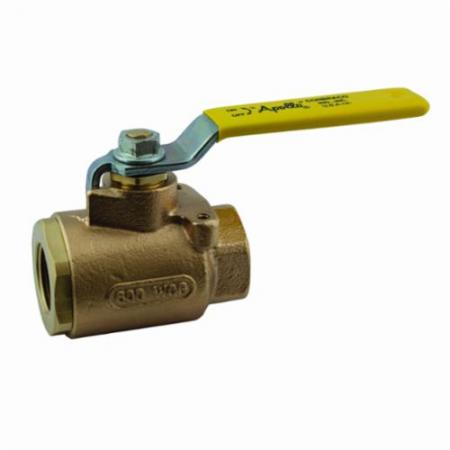

Apollo 7714127 BV, 1/4NPT, FP, BRZ, LTCH, SS B&S

Product Description

The Apollo 7714127 is a ball valve designed for effective fluid control. This two-piece valve serves as a reliable option for various applications in plumbing and HVAC systems.

• 1/4 inch nominal size with FNPT end style
• Maximum pressure rating of 600 psi CWP
• Constructed with a bronze body and 316 stainless steel components

Product Highlights

The Apollo 7714127 ball valve features a latch-lock lever actuator, which allows for easy operation and maintenance.

Product Information

Standard Information

• Manufacturer: Apollo Conbraco Industries
• Series: 77-140

Technical Specifications

• Actuator Type: Latch-Lock Lever
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 1/4 inch
• Pressure Rating: 600 psi CWP
• Temperature Rating: 500 degrees F
• Inlet to Outlet Length: 2.18 inches
• Top to Inlet Center: 1.77 inches
• Trim Material: 316 Stainless Steel Stem/RPTFE Seat
• Softgoods Material: PTFE/RPTFE
• Port Type: Full
