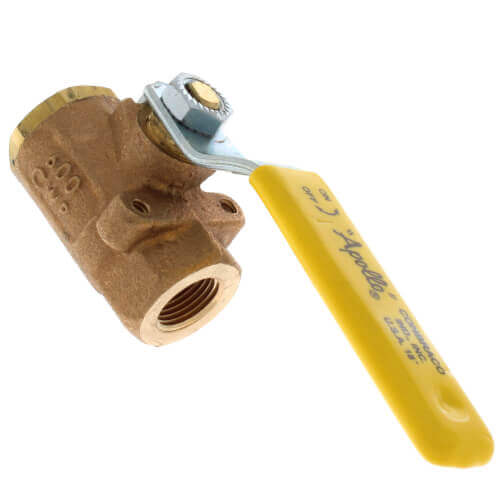

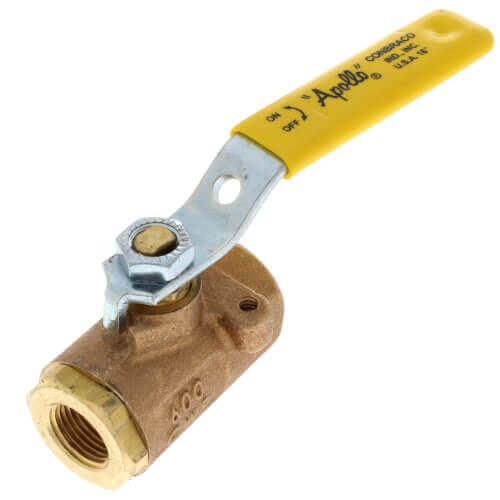

Apollo 7710101 Ball Valve 77-100 Bronze 1/4 Inch FNPT 2-Piece with Mounting Pad

Product Description

The Apollo 7710101 is a ball valve made of bronze with a 1/4 inch FNPT connection. This two-piece valve features a mounting pad and full port design, allowing for minimal pressure drop and full flow. It is suitable for use in plumbing applications where pressure ratings of up to 600 PSIG CWP and 150 PSIG SWP are needed. The handle type is a lever, designed for ease of operation. The valve uses reinforced RPTFE seals to ensure reliability and durability.

• Full port design for maximum flow
• Blowout-proof stem for safety
• Pressure rated for both water and steam applications

Product Highlights

This ball valve is ideal for easy actuator mounting or panel mounting. It is factory tested to ensure quality and performance.

Product Information

Standard Information

• Brand: Apollo
• Material: Bronze

Technical Specifications

• Size: 1/4 inch
• End Connection: FNPT
• Product Type: 2-Piece with Mounting Pad
• Port Type: Full Port
• Seal Material: RPTFE
• Handle Type: Lever
• Pressure Rating: 600 PSIG CWP / 150 PSIG SWP
• Temperature Rating: 500 DEG F
• End to End Distance: 2.18 inches
• Shipping Weight: 1.000 lbs
