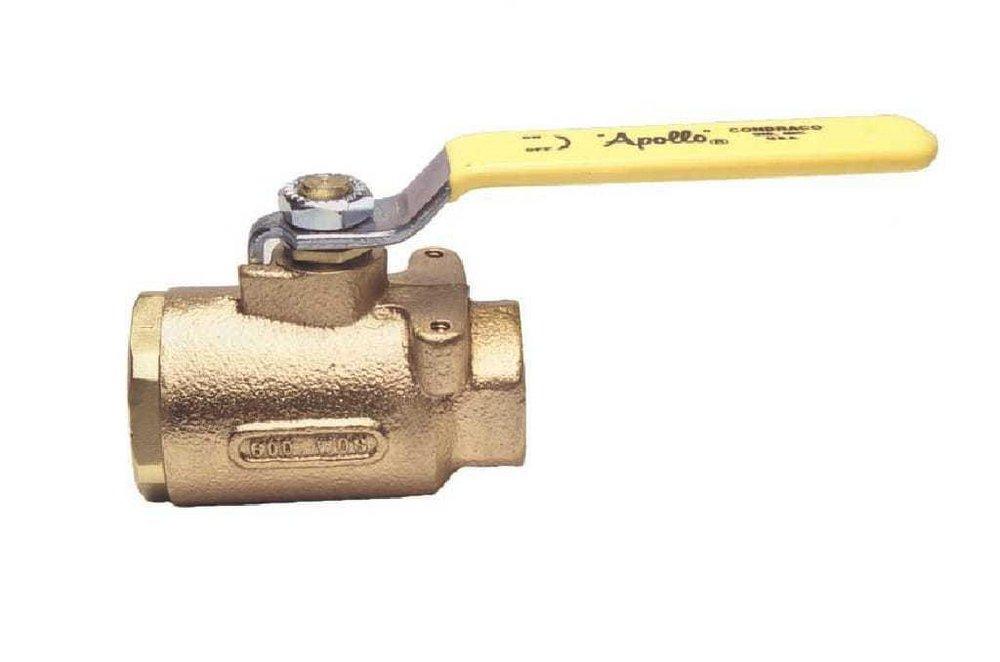

Apollo Valves 77-103-27 77-100 Series 1/2 in. Bronze Full Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 77-103-27 is a 1/2 inch bronze full port FNPT ball valve that operates at a maximum pressure of 600 psi. It is designed for reliable flow control in various plumbing and industrial applications. This valve features a manual operation with a lever handle for easy use.

• Blow out proof stem
• Adjustable packing gland
• 100% factory tested

Product Highlights

This ball valve is made in the USA and includes RPTFE seats to ensure durability and resistance to wear. The hardened ball allows for extended service life.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77-103-27

Technical Specifications

• Series: 77-100
• Weight: 0.69 lbs
• Port Size: 1/2 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Stem Material: B16 Brass
• O-Ring Material: PTFE
• Seat Material: RPTFE
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Overall Width: 1.12 in
• Overall Length: 2.18 in
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Mounting Type: Inline Threaded
