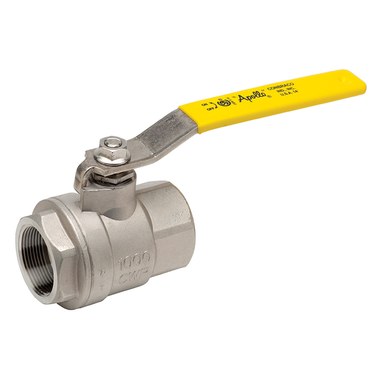

Apollo 76F10701A Ball Valve 76F-100A Stainless Steel 1-1/2 Inch FNPT 2-Piece Full Port

Product Description

The Apollo 76F10701A is a stainless steel ball valve designed for efficient flow control. This product features a one and a half inch FNPT connection and two-piece construction to enhance durability. Ideal for a wide range of applications, this full port ball valve is suitable for various industrial settings.

• Material: Stainless steel
• Size: One and a half inches with FNPT end connection
• Max Pressure: 1000 PSIG CWP / 150 PSIG SWP

Product Highlights

This ball valve's full port design minimizes flow restrictions, allowing for maximum fluid passage.

Product Information

Standard Information

• Brand: Apollo
• MPN: 76F10701A

Technical Specifications

• Material: Stainless Steel
• Size: 1-1/2 inches
• End Connection: FNPT
• Product Type: 2-Piece
• Port Type: Full Port
• Seal Material: RPTFE
• Handle Type: Lever
• Pressure: 1000 PSIG CWP / 150 PSIG SWP
• End to End Distance: 4.66 inches
• Shipping Weight: 5.000 lbs
