Apollo 7610250A BV,3/8NPT,SS,2-1/4LCKG

Product Description

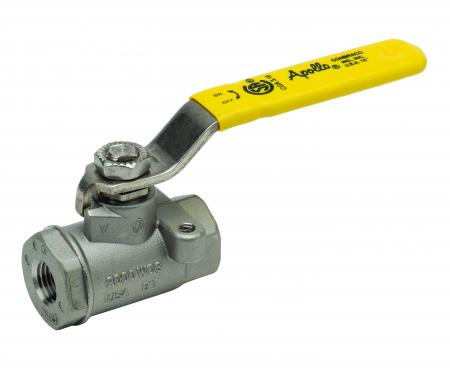

The Apollo brand produces the 7610250A ball valve. This is a two-piece valve made for applications needing reliable control of flow. It features a nominal size of three-eighths of an inch and is constructed from stainless steel for durability.

• Works in systems with a maximum pressure of 150 psi.
• Compatible with standard NPT connections.
• Comes with a five-year warranty for peace of mind.

Product Highlights

The 7610250A valve is ideal for plumbing and HVAC systems, where both durability and performance are essential. The standard port design allows for optimal flow control in various applications.

Product Information

Standard Information

• Manufacturer: Apollo Conbraco Industries
• Type: 2-Piece

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Stainless Steel
• End Style: FNPT
• Nominal Size: 3/8 in
• Inlet to Outlet Length: 2.05 in
• Top to Inlet Center: 1.71 in
• Pressure Class: 250 lb
• Pressure Rating: 150 psi
• Softgoods Material: MPTFE/PTFE
• Trim Material: 316 Stainless Steel/RPTFE
• Series: 76-100
• Domestic/Import: Domestic
