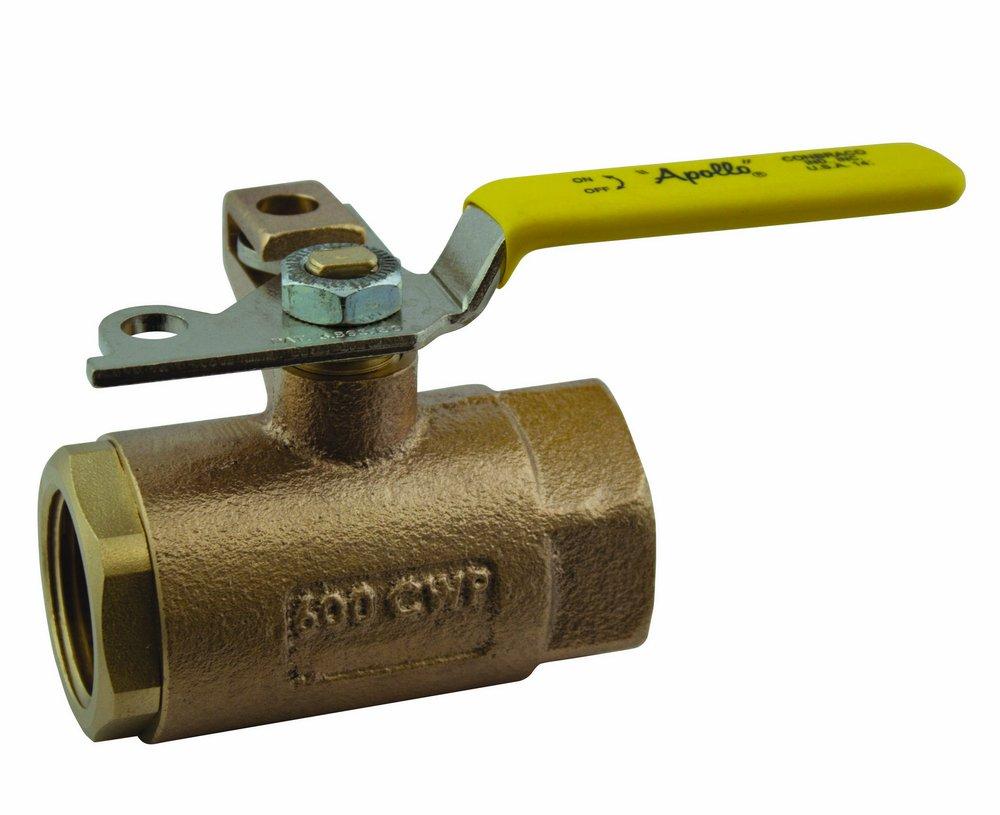

Apollo 7510141 75-100 Series 1/4 in. Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo valve with MPN 7510141 is a robust 1/4 inch bronze ball valve designed for standard port applications. This ball valve features a blow out proof stem, making it ideal for industrial use. It is equipped with a stuffing box ring and an adjustable packing gland, ensuring reliable sealing for fluid control.

• Blow out proof stem
• Adjustable packing gland
• Hardened ball for wear resistance

Product Highlights

Perfect for industrial and commercial applications, the Apollo 7510141 valve allows for safe maintenance and operates under pressure ratings of up to 600 psi.

Product Information

Standard Information

• Brand: Apollo Valves
• Part No: 7510141
• Product Type: 2-Piece Locking
• End Connection: FNPT
• Pressure Rating: 600 psi CWP / 150 psi SWP

Technical Specifications

• Size: 1/4 inch
• Material: Bronze
• Seal Material: RPTFE
• Ball Material: Chrome-Plated Brass
• Handle Type: Lever
• Weight: 0.5 lbs
• Overall Length: 2.22 inches
• Maximum Operating Temperature: 200 °F
