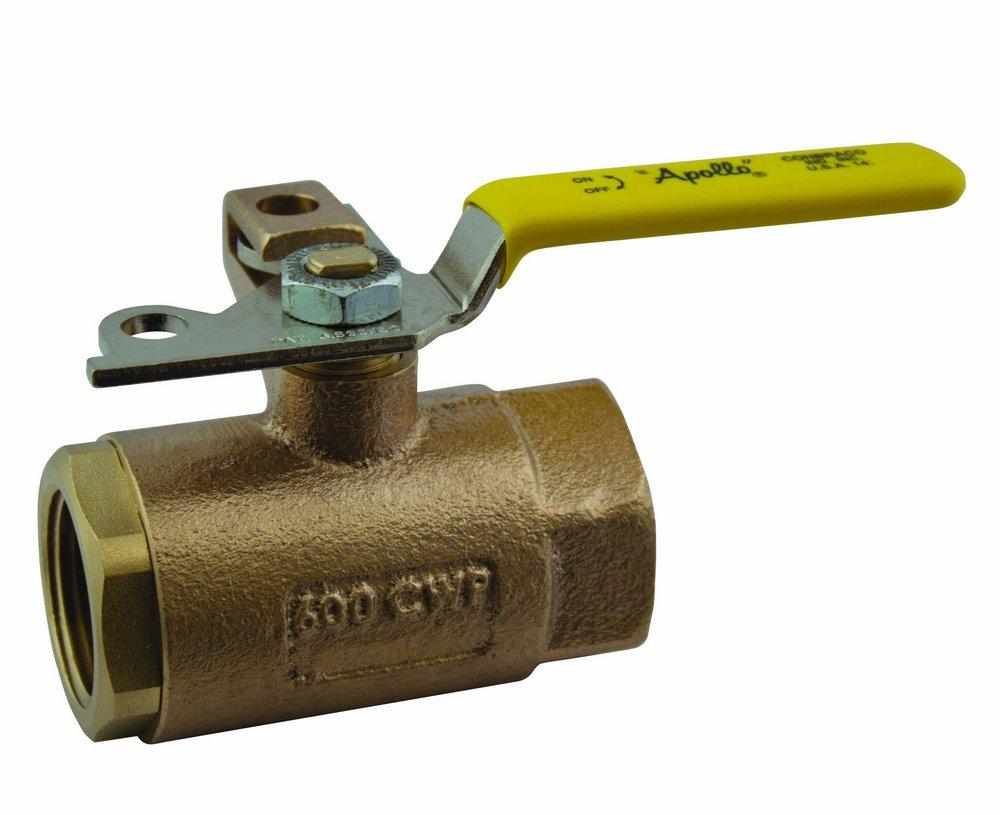

Apollo Valves 7510701 75-100 Series Bronze Standard Port FNPT 600 Ball Valve 1-1/2 in

Product Description

The Apollo Valves 7510701 is part of the 75-100 Series, a 1-1/2 inch bronze, standard port FNPT ball valve designed to meet industrial and commercial standards. This valve ensures safe and easy maintenance of pneumatic tools, featuring adjustable packing gland and blowout-proof stem.

• Meets OSHA standards
• Can be padlocked in open or closed position
• Hardened ball for wear resistance

Product Highlights

The Apollo 7510701 valve offers reliability and durability for various applications. Made in the USA, it includes a 5-year warranty and meets several certification standards.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 75-100
• Type: 2-Piece, Standard Port

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/2 inches
• Connection Type: FNPT
• Dimension: 4.37 inches L
• Flow Co-Efficient: 84 Cv
• Item Name: Pad Locking Ball Valve
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B927, C27451, ASTM B584
• Material: Bronze
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seat Material: RPTFE
• Stem Material: Brass
• Temperature Rating: 50 - 200 deg F
• Standards/Certifications: ISO 9001-2008, MSS SP-11, WW-V-35C Type II, OSHA, CRN OC10908.5C
• Applications: For industrial and commercial use
