Conbraco 7014264 3/4 in FNPT Bronze Ball Valve Inline

Product Description

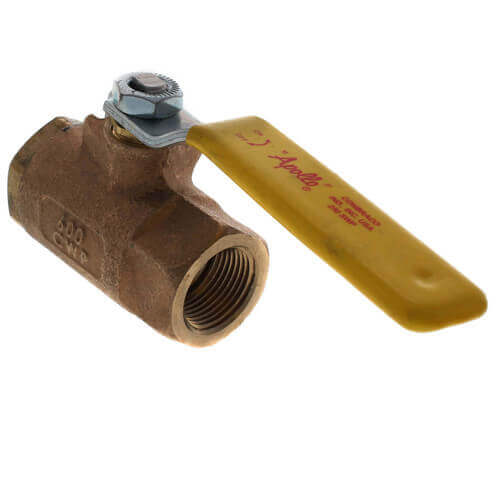

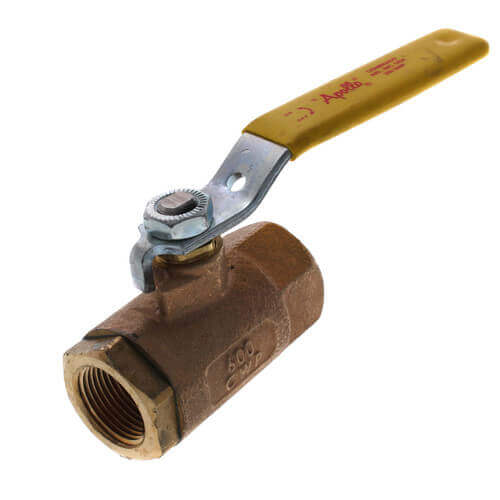

The Conbraco 7014264 is a 3/8 standard port threaded ball valve designed for high pressure steam systems and a variety of fluids. This valve features a heavy cast bronze body for durability and long-lasting performance. The stainless steel slot vented ball and stem are standard, ensuring reliable operation. The valve is built to handle pressures up to 600 psi CWP and temperatures reaching 500 degrees Fahrenheit.

• Heavy cast bronze body
• Slot vented stainless steel ball
• 250 psi steam service capability

Product Highlights

This ball valve is compliant with MSS SP-110 standards and is ideal for plumbing applications. The valve offers a maximum steam pressure of 250 psi and is designed for vacuum service.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 7014264

Technical Specifications

• Overall Length: 2.0 in
• Maximum Pressure: 600 psi CWP
• Valve Size: 3/8 NPT
• Connection Type: FNPT x FNPT
• Stem Type: Blowout Proof
• Body Material: Bronze B584
• Ball Material: 316 Stainless Steel
• Seat Material: MPTFE
