Apollo Valves 7010827 70-100 Series 2 in. PTFE Bronze Standard Port FNPT 600# Ball Valve

Product Description

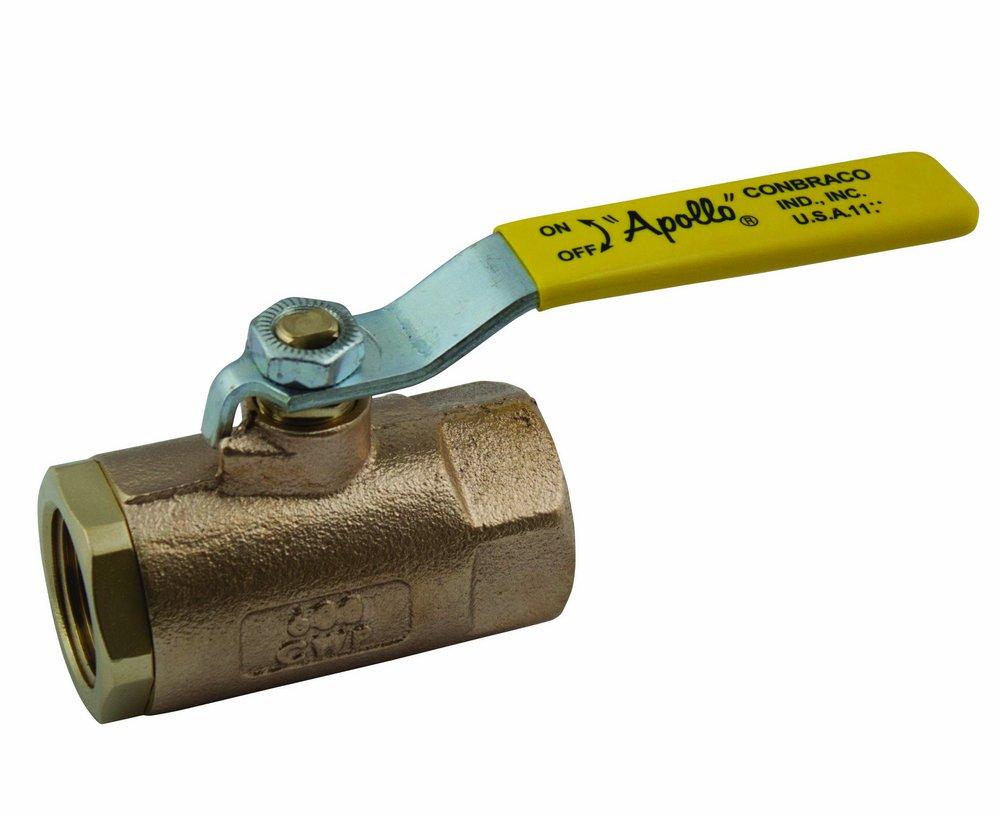

The Apollo Valves 7010827 70-100 Series 2 inches PTFE Bronze Standard Port FNPT 600# Ball Valve is a high-performance valve designed for various commercial and industrial applications.

• Reinforced seats and adjustable packing gland
• Heavy-duty construction with made in the USA quality
• Handles saturated steam up to 150 psig

Product Highlights

This ball valve features a two-piece construction with female NPT connections. It is cast and machined in Apollo's South Carolina manufacturing plants, ensuring top-notch performance and reliability. Suitable for vacuum service up to 29 inches Hg, this valve is 100% factory tested and includes premium materials such as RPTFE seats and MPTFE stem packing rings.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7010827
• Series: 70-100
• Application: Commercial, Industrial
• Standards/Certifications: ISO 9001-2008, MSS SP-11, CRN OC10908.5C

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 2 inches
• Connection Type: FNPT
• Flow Co-Efficient: 108 Cv
• Item Name: Ball Valve with Latch Lock
• Material Specifications: ASTM B16, ASTM B584
• Material: Bronze
• Model: 70-100
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: PTFE
• Seat Material: RPTFE
• Stem Material: Brass
• Temperature Rating: 500 degrees F
• Type: 2-Piece, Standard Port
