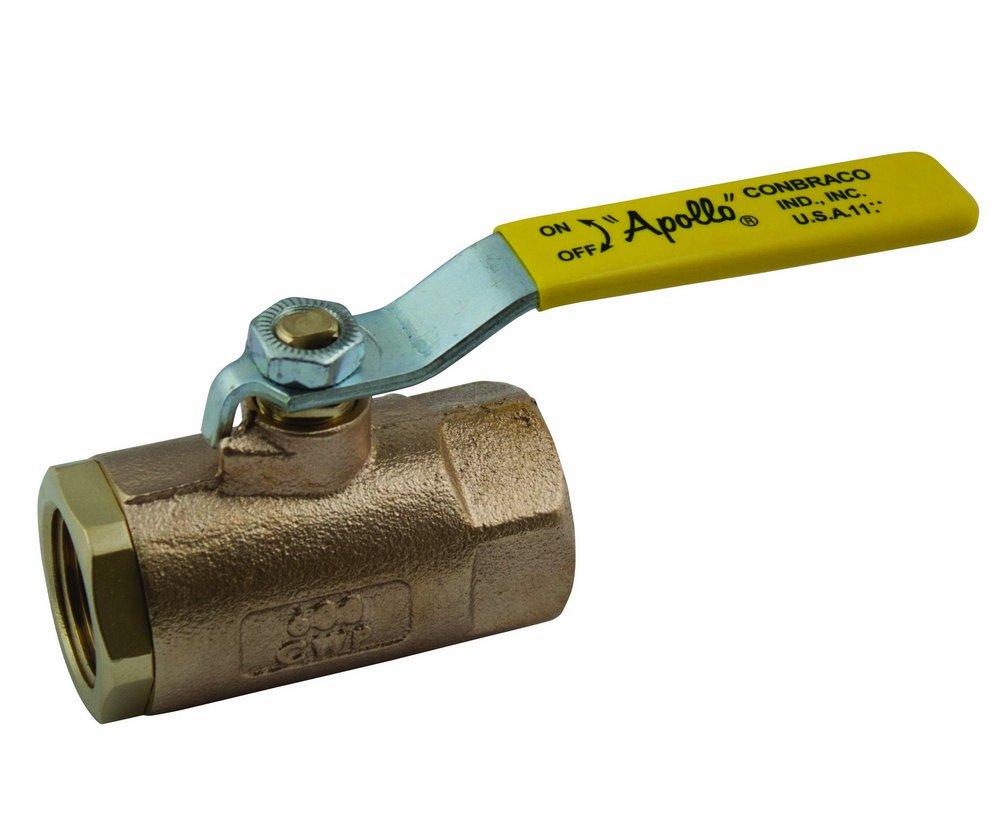

Apollo Valves 701042741 70-100 Series 3/4 in. Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 701042741 is a two-piece ball valve designed for plumbing applications. This valve features a three-quarter inch female NPT connection and operates at a maximum pressure of six hundred psi. Constructed from bronze, the valve offers reliable service, making it suitable for various plumbing systems.

• Three-quarter inch female NPT connection
• Maximum pressure rating of six hundred psi
• Two-piece design with blowout-proof stem

Product Highlights

The Apollo 70-100 Series ball valve is recognized for its robust performance and durability in plumbing applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 701042741

Technical Specifications

• Model: 70-100
• Body Material: Cast Bronze
• Ball Material: Chrome-Plated Brass
• Connection Size: Three-quarter inch
• Connection Type: FNPT
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Temperature Rating: Maximum 500 °F, Minimum -20 °F
• Flow Direction: 2-Way
• Handle Type: Lever Handle
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Seat Material: RPTFE
• Stem Material: B16 Brass
• Overall Length: 3.00 in
