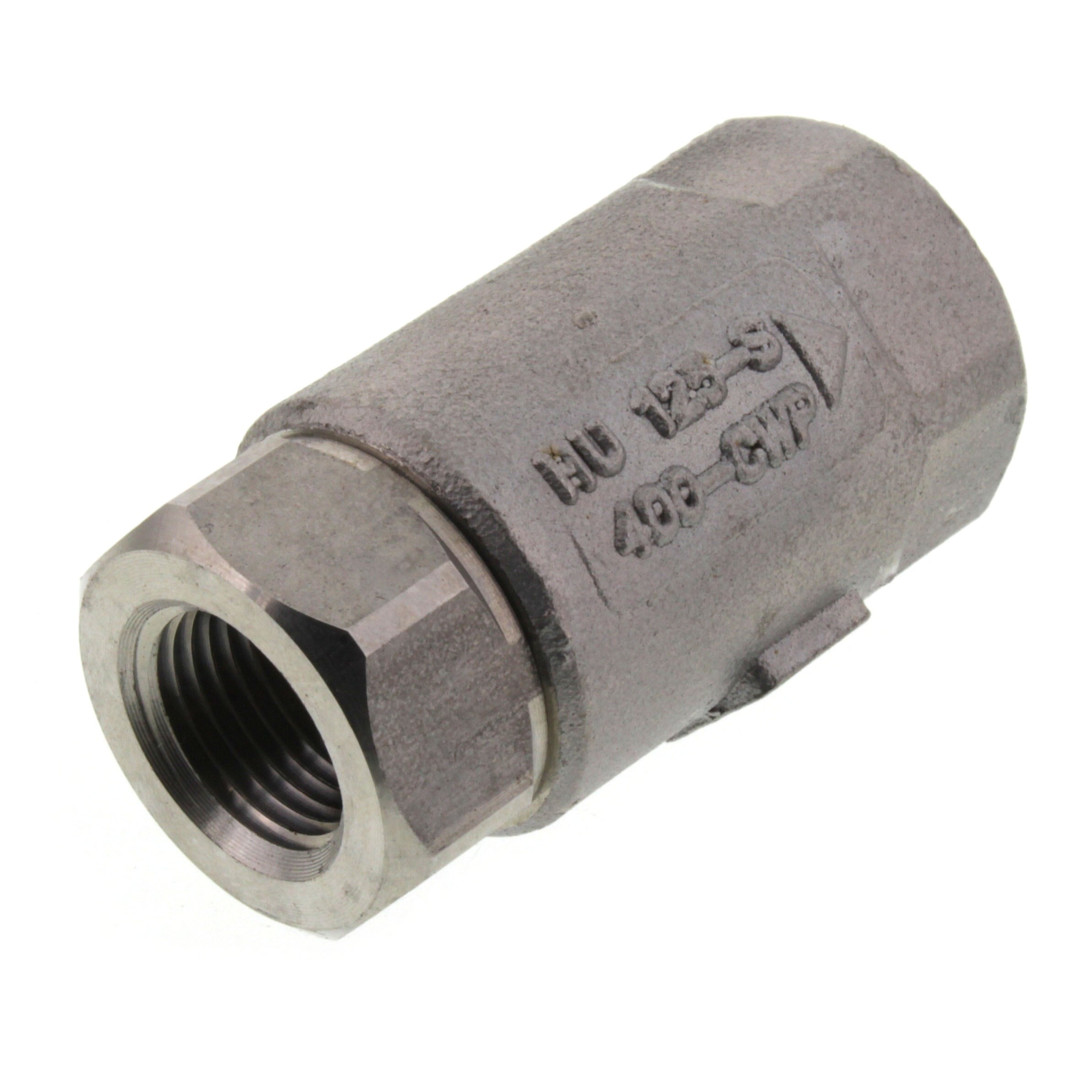

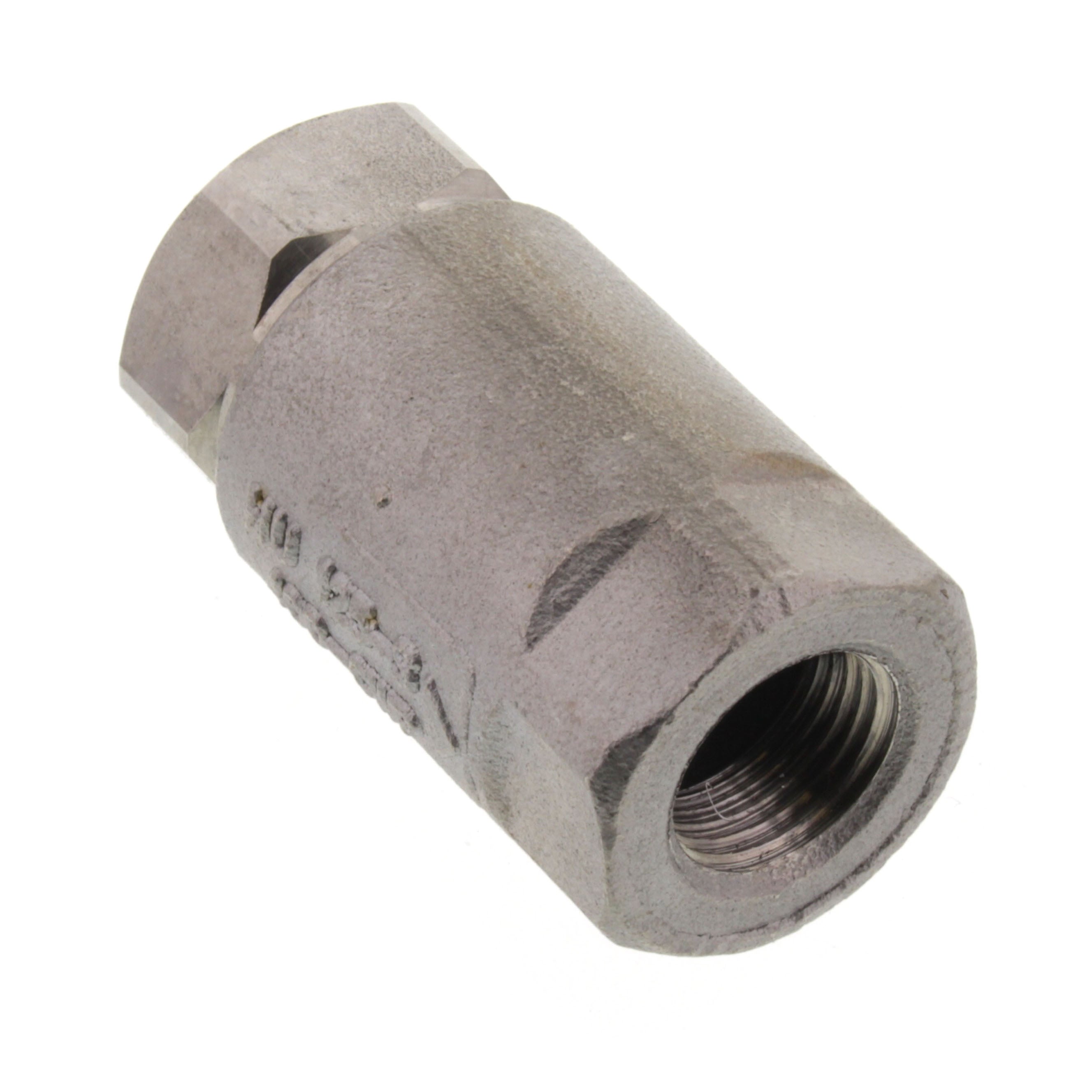

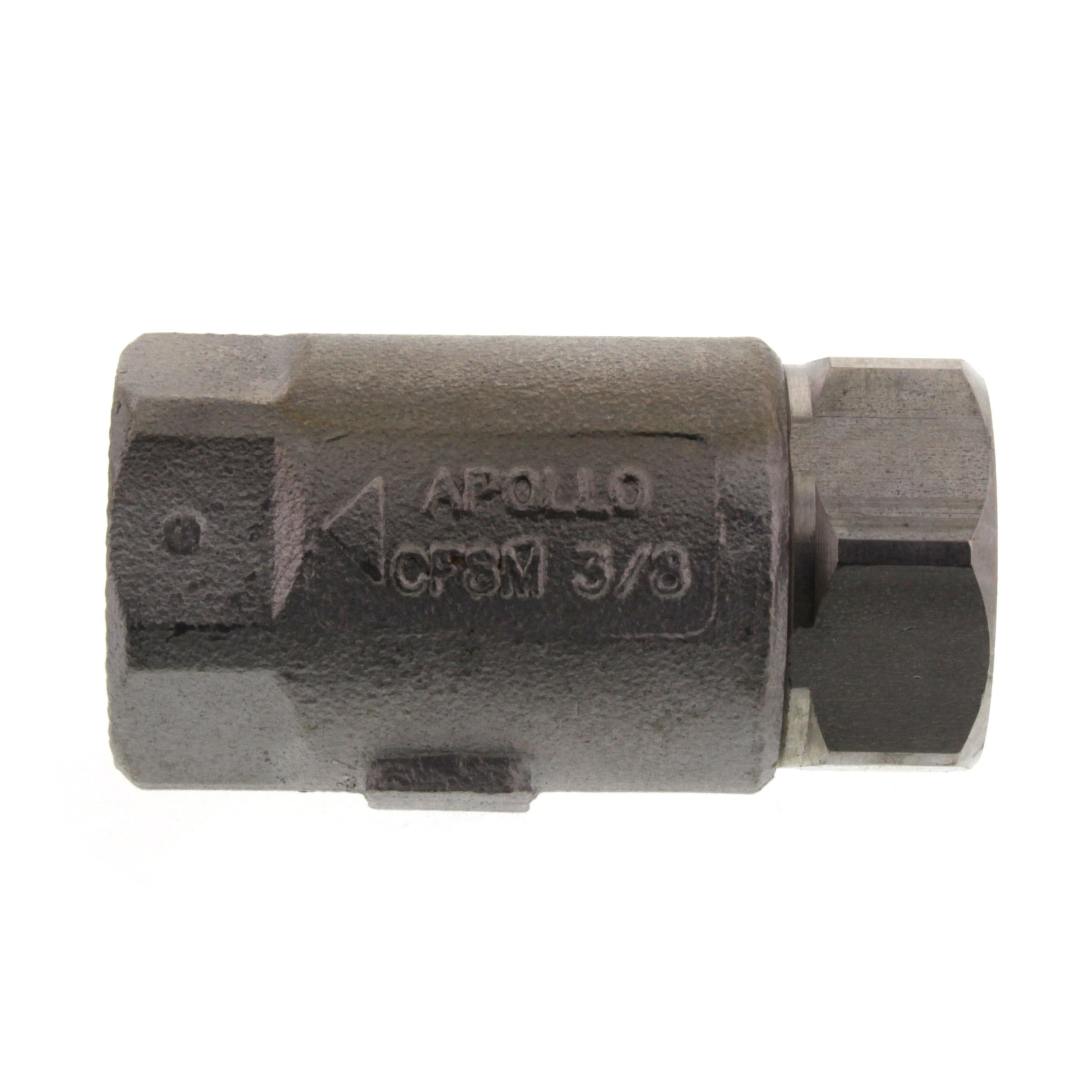

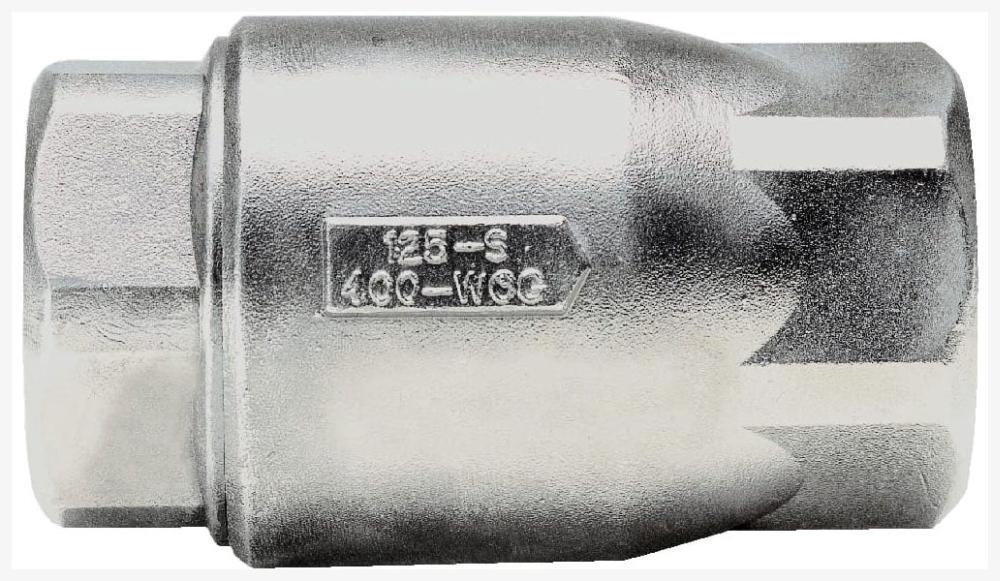

Apollo 6210201 62-100 Series Stainless Steel FNPT Check Valve

Product Description

The Apollo 62-100 series stainless steel FNPT check valve, MPN 6210201, is designed to control flow in a single direction. It features a spring-loaded ball cone mechanism that prevents reverse flow efficiently.

• Durable stainless steel construction suitable for corrosive environments.
• Cracking pressure of 0.5 psi for effective operation.
• Quick seating action with a center-guided design.

Product Highlights

This check valve is ideal for use in chemical processing, pulp and paper, and other demanding applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 6210201

Technical Specifications

• Body Material: ASTM A-351 Cast Stainless Steel
• Max Pressure Rating: 400 psi (CWP)
• Threads: Female NPT on both ends
• Weight: 0.35 lbs
• Dimensions: 2.125 inches x 2.125 inches x 1.125 inches
• Temperature Ratings: Max 350°F
• Seal Material: EPDM
• Seat Material: RPTFE
• Spring Material: 316 Stainless Steel
• Application: General purpose in various piping systems
