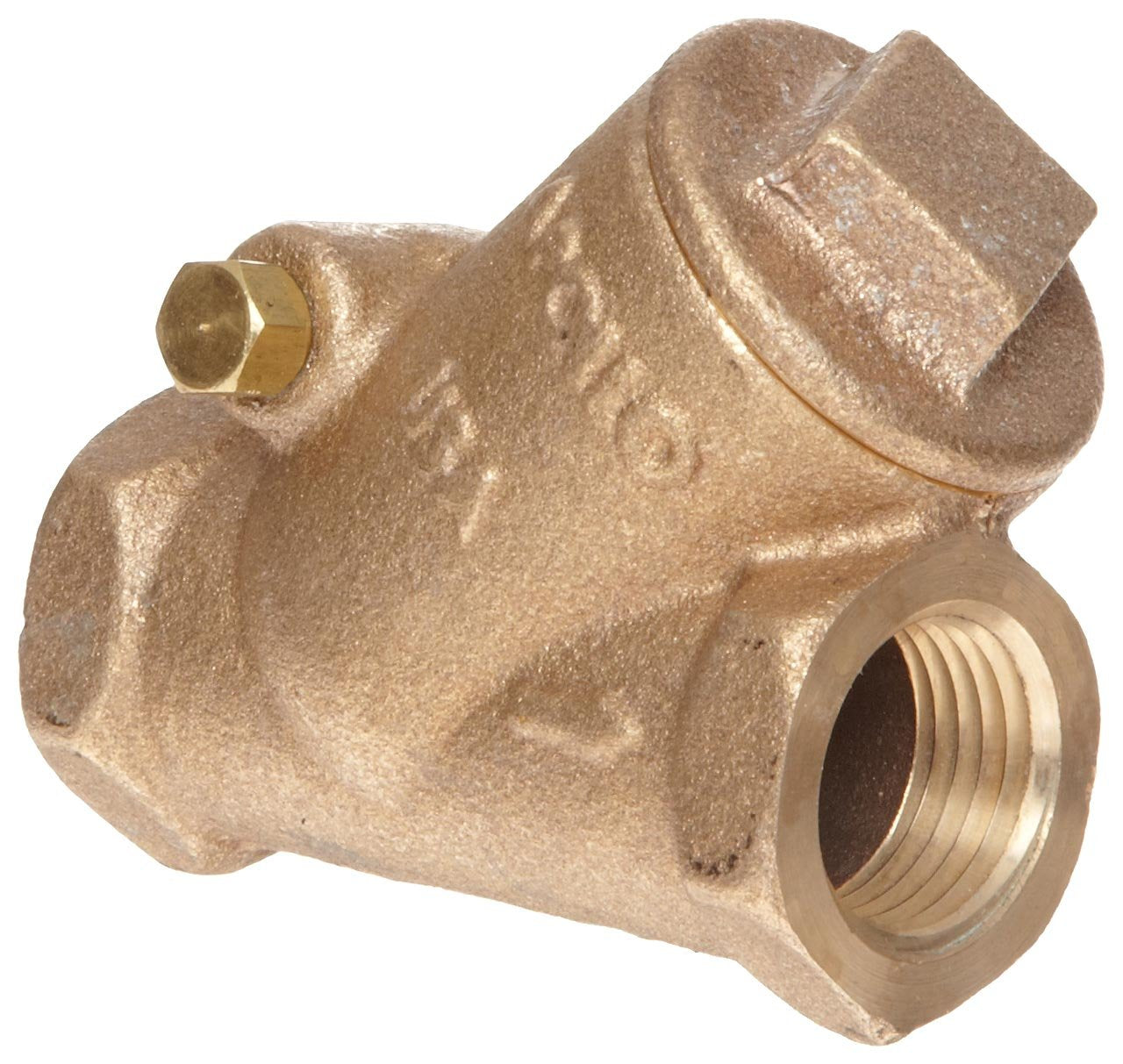

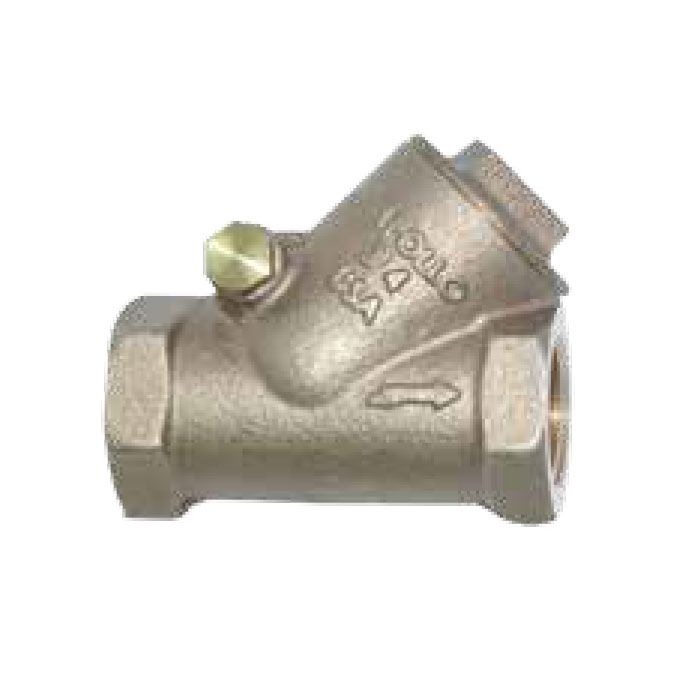

Apollo 61Y208T1 163T Series Bronze Swing Check Valve 2 NPT

Product Description

The Apollo 163T Series Bronze Swing Check Valve with MPN 61Y208T1 is designed for efficient fluid flow control. This valve accommodates installations in both horizontal and vertical orientations with upward flow.

• Y-pattern design enables versatility in installation.
• Constructed from bronze for enhanced corrosion resistance compared to brass; features a PTFE seat for chemical resistance.
• Includes female NPT threads for secure connections to male threaded pipes.

Product Highlights

This swing check valve is ideal for applications in water, gas, and steam lines, providing reliable performance under various conditions.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 61Y208T1

Technical Specifications

• Model: 163T2
• Valve Size: 2 inches
• Valve Connection: NPT
• Body Material: Bronze
• Max Pressure: 125 psi SWP
• Working Temperature Range: -20 to 406 degrees Fahrenheit
• Cold Working Pressure: 200 psi at 100 degrees Fahrenheit
• Standards Met: MSS SP 80 and ASME B1.20.1
