Apollo 4ALF208A2 RPLF4A Series Reduced Pressure Backflow Preventer with Ball Valve 2 in

Product Description

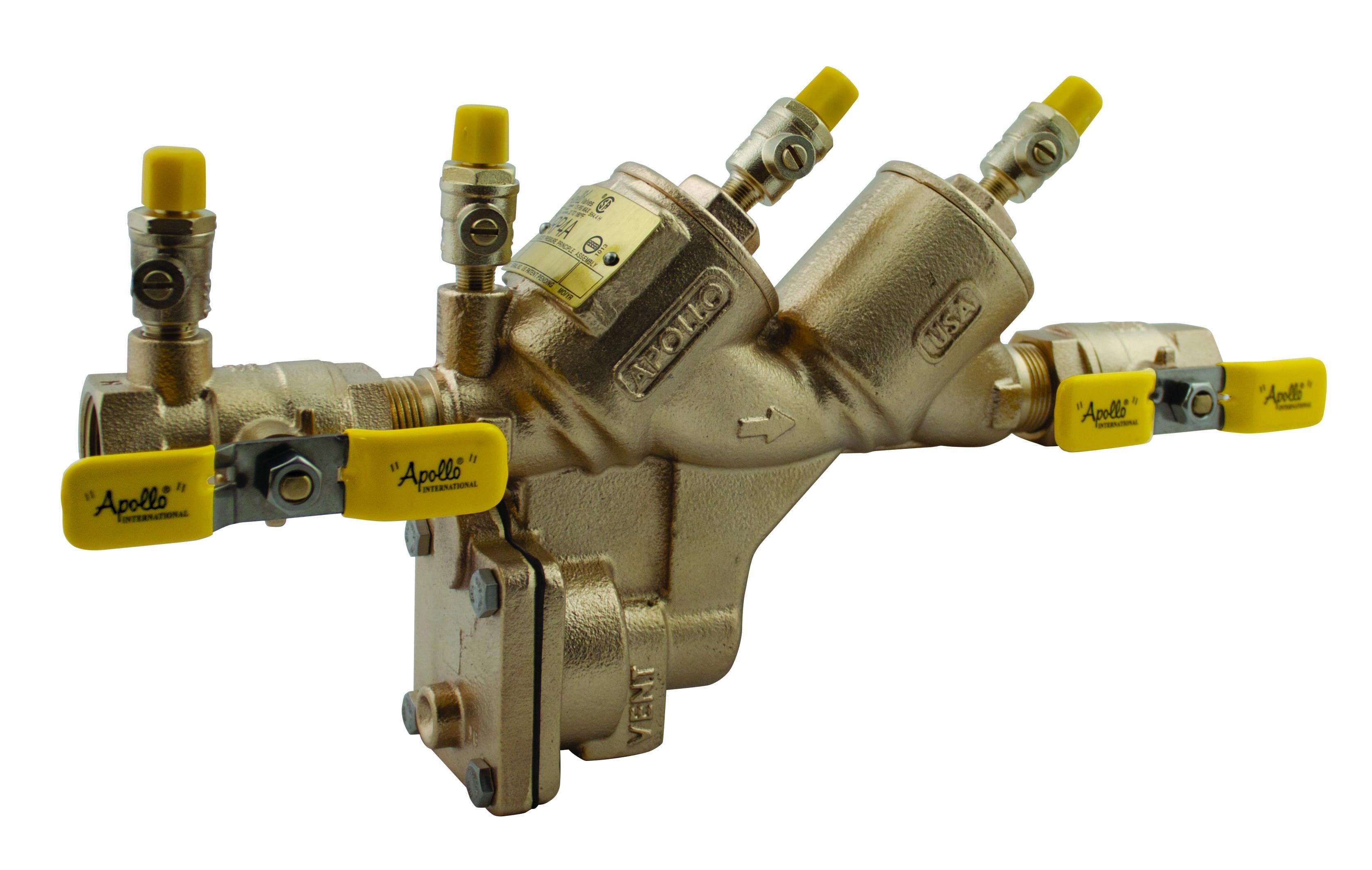

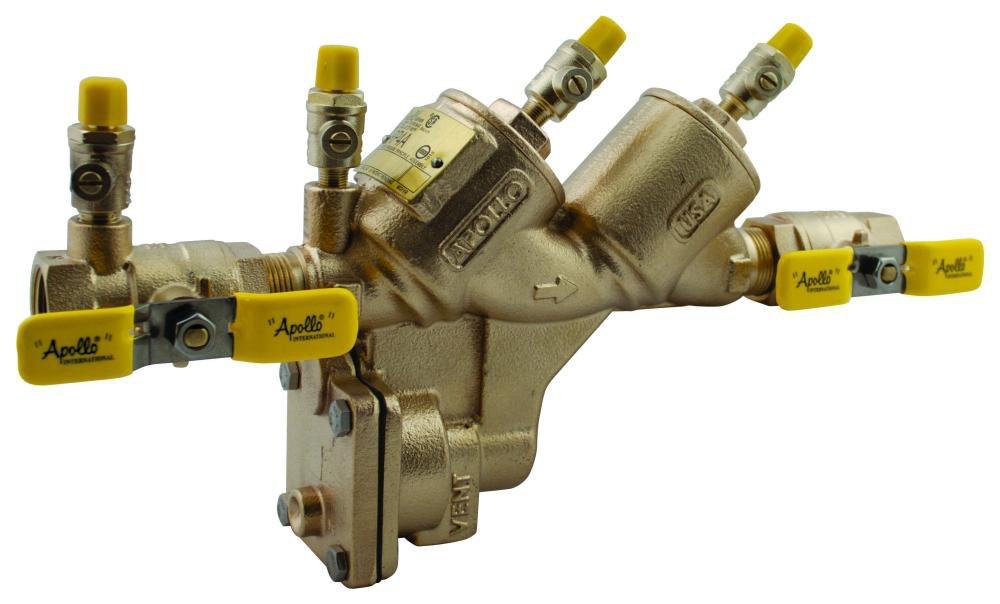

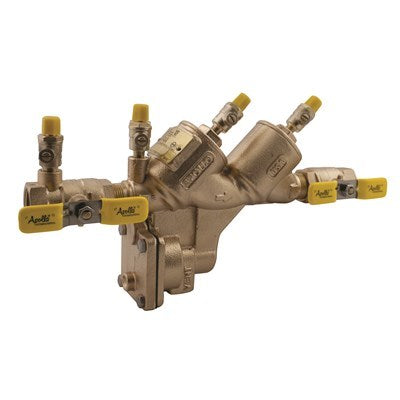

The Apollo Valves 4ALF208A2 is a RPLF4A Series Reduced Pressure Backflow Preventer designed to protect potable water supplies from back-siphonage or backpressure contamination. Constructed with a bronze body, this 2-inch device features modular check valve cartridges with easily replaceable parts and reversible, chloramine-resistant silicone seat discs. It operates effectively within a pressure range of up to 175 psi and a temperature range of 33 to 180 degrees F, ensuring water safety in various applications.

• Modular check valve cartridge with easily replaced parts
• Reversible/removable chloramine resistant silicone seat discs
• Maximum protection against back pressure/back siphon age

Product Highlights

Provides robust protection for potable water systems against backflow, featuring durable bronze construction and modular components for easy maintenance.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 4ALF208A2
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Part Number: A4ALF208A2
• Item Number: 4923398
• Manufacturer Part Number: 4ALF208A2
• Nominal Size: 2 in
• Body Material: Bronze
• Backflow Type: Reduced Pressure
• Manufacturer Name: Apollo Conbraco
• Media: Water
• Port Type: Full
• Pressure Rating: 175 psi
• Series: RPLF4A
• Temperature Rating: 33 to 180 deg F
• Type: Standard
• Includes: Standard Ball Valve, Stainless Steel Handles, Trim
• Domestic/Import: Domestic
• Country of Origin: US
• Standards and Approvals: Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1013-2011, AWWA C511, CSA B.64.5, C89836 Body, Federal Public Law 111-380, IAPMO Listed, NSF/ANSI 61/372, USC FCCCHR, UPC Listed, PROP65: Cancer and Reproductive Harm
• Finishing: None
• Connection Type: FPT - female thread conical (NPT)
• Product Group: Valves (backflow preventers)
• ETIM Class: EC011469 Check valve
• Product Type: 4ALF20XA2
• Surface Protection: Untreated
• FM Quality Mark: No
• UL Quality Mark: No
• ULC Quality Mark: No
• LPCB Quality Mark: No
• Suitable for Central Heating Water: No
• Certified According to SVGW for Water: No
• Certified According to SVGW for Gas: No
• VdS Quality Mark: No
• DVGW Quality Mark for Gas: No
• DVGW Quality Mark for Water: No
• KIWA Certified: No
• SKU: WQ CB4ALF-208-A2
• Valve Type: RP4ALF Reduced Pressure Zone Backflow Assembly
• Valve Shutoffs: Ball Valves With Stainless Steel Handles And Nuts
