Apollo 36ELF124-01X2 Pressure Reducing Valve 3/4 in Double Union x PEX A

Product Description

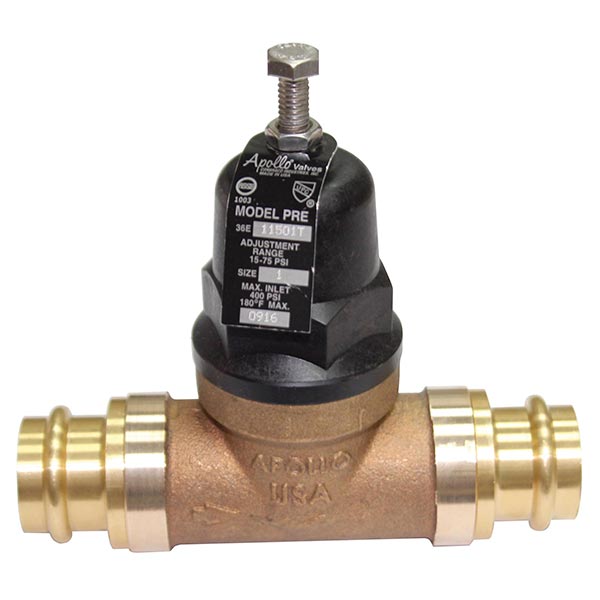

The Apollo pressure reducing valve, model 36ELF124-01X2, is designed for both residential and commercial applications. It features a robust bronze body, ensuring durability and reliability. This valve regulates pressure in water systems, making it essential for maintaining consistent water flow and preventing damage from excessive pressure.

• Modular seat disc and strainer cartridge
• Factory tested and preset at sixty or one hundred psi
• Compatible with Ridgid® XL press tool

Product Highlights

Built for high efficiency, this valve includes a lead-free construction, EPDM O-ring, and leak before press technology for added safety during installation.

Product Information

Standard Information

• Brand: Apollo Conbraco
• MPN: 36ELF124-01X2

Technical Specifications

• Application: Residential and Commercial Applications
• Body Material: Bronze
• Dimensions: 5.8 inches H
• End Style: Double Union x PEX A
• Inlet to Outlet Length: 5.7 inches
• Media: Water
• Mfg Standards/Approvals: ASSE 1003-2009 | CSA B356 | ASTM B584 Body | NSF Grade O-Ring, Seat Disc | UPC Listed | cCSAus Certified | cUPC Listed
• Nominal Size: 3/4 inches
• Pressure Range: 15 to 75 psig
• Series: 36ELF
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees F
• Trim Material: EPDM
• Warranty: 5 years
