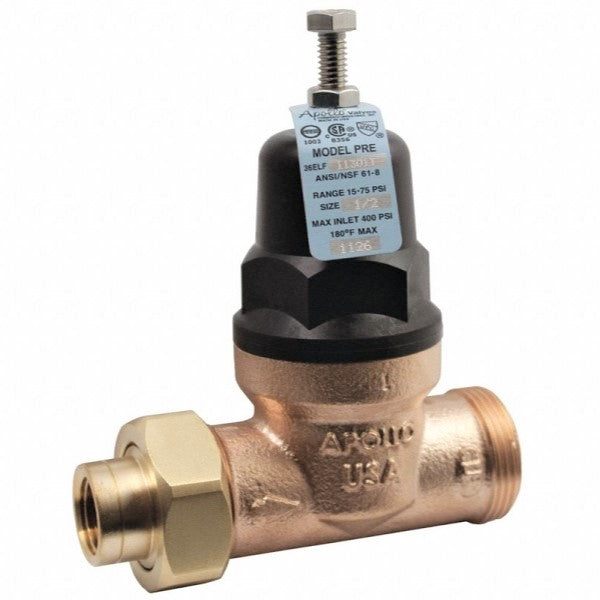

Apollo 36E12401T Pressure Reducing Valve 3/4 Double Union x FNPT 15 to 75 psig

Product Description

The Apollo 36E12401T Pressure Reducing Valve is designed for efficient water distribution. This valve features a bronze body and is suitable for a variety of plumbing applications. With a nominal size of three-fourths of an inch, it effectively regulates pressure levels between fifteen to seventy-five pounds per square inch (psi).

• Balanced piston design ensures consistent performance.
• Includes stainless steel adjusting screw and nut for easy regulation.
• Factory tested and preset at sixty psi for reliability.

Product Highlights

This valve is ideal for both residential and commercial plumbing systems, providing reliable pressure control.

Product Information

Standard Information

• Brand: Apollo Conbraco
• Part Number: E0266

Technical Specifications

• Application: For Water Distribution Systems
• Body Material: Bronze
• Dimensions: Six inches high x two and three-fourths inches diameter
• End Style: Double Union x FNPT
• Inlet to Outlet Length: Five and one-half inches
• Media: Water
• Mfg Standards/Approvals: ARRA Compliant, ASSE 1003, ASTM B584 Valve Body, ASTM B16 Union Nut/Tailpiece, cCSAus Certified, CSA B356, IAPMO/UPC, ISO 9001:2008 Registered
• Nominal Size: Three-fourths of an inch
• Package Weight: 2.399 lb
• Pressure Range: Fifteen to seventy-five psi
• Series: 36E
• Softgoods Material: EPDM O-Ring
• Temperature Rating: Thirty-three to one hundred eighty degrees Fahrenheit
