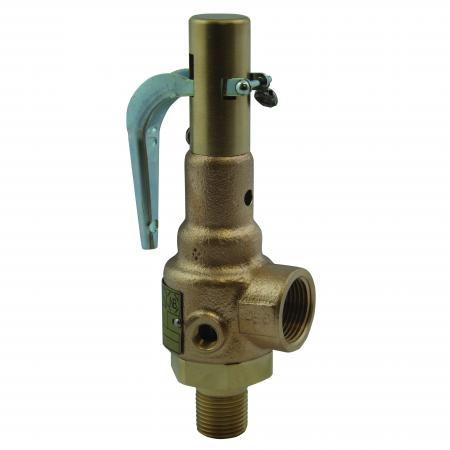

Apollo 19KGFK125 Safety Relief Valve 1-1/4 x 1/2 in

Product Description

Apollo, 19KGFK125 is a safety relief valve designed for various applications. It features a nominal size of one and one-quarter inches by one-half inch with a MNPT x FNPT end style. The valve is rated for a maximum pressure of one hundred twenty-five psi and can handle temperatures from minus sixty degrees to four hundred six degrees Fahrenheit. With a flow rate of one thousand three hundred fifty-eight standard cubic feet per minute, it is suitable for air media.

• Made from bronze with brass trim
• Includes a lift lever handle actuator
• PTFE seat for enhanced sealing

Product Highlights

This safety relief valve is essential for overpressure protection in applications such as steam boilers, sterilizers, and air compressors. The design includes a wide wrenching hex for ease of installation and maintenance.

Product Information

Standard Information

• Manufacturer: Apollo Conbraco Industries
• Series: 19K

Technical Specifications

• Actuator Type: Lift lever handle
• Body Material: Bronze
• Dimensions: 11 inches H
• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Flow Rate: 1358 scfm
• Media: Air
• Nominal Size: 1-1/4 x 1/2 inches
• Pressure Rating: 125 psi
• Softgoods Material: PTFE seat
• Temperature Rating: -60 to 406 degrees Fahrenheit
• Trim Material: Brass
