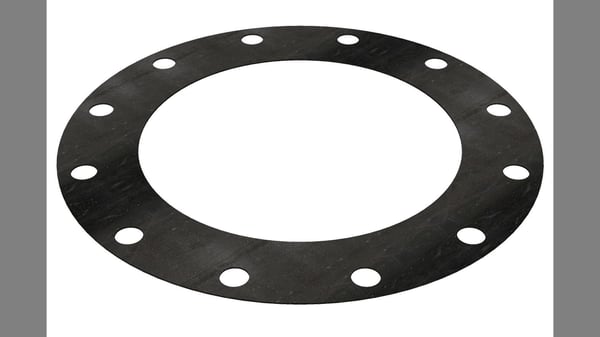

APG 13900FF125A1000FC 10 IN CLASS 150 X 1/8 FULL FACE NEOPRENE GASKET

Product Description

The APG 13900FF125A1000FC is a full face gasket designed for various industrial applications. This gasket features a nominal size of ten inches, with a thickness of one eighth inch. It fits standard flange connections and includes twelve bolt holes of one inch size. The inside diameter measures ten and three-fourth inches, while the outside diameter measures sixteen inches. Built from a neoprene blend, this gasket provides moderate resistance to oil and ozone, making it suitable for different sealing needs.

• Crafted from a neoprene blend
• Temperature range: -20 to 170 degrees Fahrenheit
• Class 150 rated

Product Highlights

This gasket offers reliable sealing in general applications, from bumpers to pads. Its durability ensures a secure fit for various piping installations.

Product Information

Standard Information

• Manufacturer: APG
• Part Number: 6646

Technical Specifications

• Type: Full Face
• Class: Class 150
• Color: Black
• Material: Neoprene Blend
• Thickness: 1/8 inch
• Nominal Size: 10 inches
• Inside Diameter: 10-3/4 inches
• Outside Diameter: 16 inches
• Number of Bolt Holes: 12
• Bolt Hole Size: 1 inch
• Temperature Rating: -20 to 170 degrees Fahrenheit
