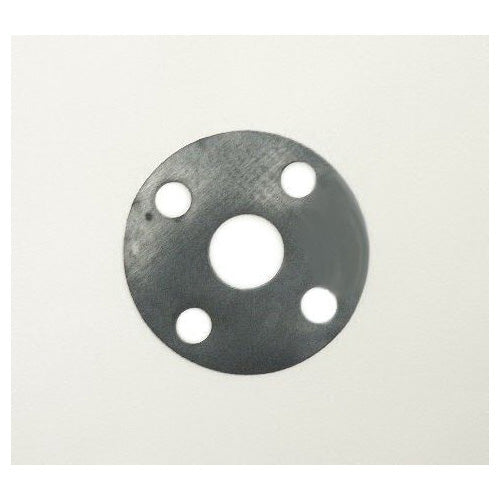

APG 13900FF062A0100FC Full Face Flange Gasket, Non-Asbestos Neoprene Blend, 1 in

Product Description

The APG Full Face Flange Gasket, MPN 13900FF062A0100FC, is designed for reliable sealing in various applications. This gasket is constructed from a non-asbestos neoprene blend. It is suitable for use in environments with temperatures ranging from twenty to one hundred seventy degrees Fahrenheit. The gasket features four bolt holes and is compatible with Class 150 piping systems.

• Non-asbestos neoprene blend for resistance to oil and ozone
• Optimized for general gasket and flange applications
• Durable design with a tensile strength of 800 psi

Product Highlights

This gasket is ideal for plumbers and HVAC technicians, providing a secure seal to prevent leaks in piping systems.

Product Information

Standard Information

• Brand: APG
• Manufacturer: APG

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1-5/16 in
• Outside Diameter: 4-1/4 in
• Thickness: 1/16 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 5/8 in
• Temperature Rating: 20 to 170 deg F
• Material: Non-Asbestos Neoprene Blend
