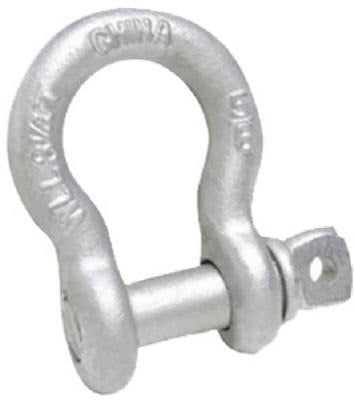

Apex Tools Group Llc T9641435 Screw Pin Anchor Shackle

Product Description

The APEX TOOLS GROUP LLC T9641435 is a 7/8-inch forged, galvanized screw pin anchor shackle rated for a working load limit (WLL) of 6-1/2 tons. Forged construction delivers consistent grain structure and high tensile strength compared to cast alternatives. The galvanized finish provides corrosion resistance for outdoor, marine, and industrial environments. The screw pin design allows quick attachment and release without special tools, making it practical for rigging, lifting, and load-securing applications. Each unit is individually UPC tagged for inventory tracking. This shackle is intended for use by trained rigging and lifting professionals who understand load angles, sling factors, and applicable safety standards.

This anchor shackle is suited for general rigging, hoisting, and tie-down work across construction, marine, industrial, and utility applications. The 7/8-inch bow size accommodates standard wire rope slings, chain slings, and synthetic round slings within the rated capacity. It is packaged in quantities of 10 per pack, making it practical for job-site stocking. Always verify that the WLL of all rigging components in a lift system meets or exceeds the calculated load before use.

Key Features

• 7/8-inch screw pin anchor shackle with 6-1/2-ton working load limit
• Forged construction for uniform strength and consistent load performance
• Galvanized finish for corrosion resistance in outdoor and marine environments
• Screw pin closure allows tool-free connection and removal
• Individually UPC tagged for easy inventory management
• Packaged 10 units per pack

Compatibility

Designed as a standard 7/8-inch screw pin anchor shackle suitable for general rigging and lifting assemblies where a 6-1/2-ton WLL component is required.

Installation Notes

Installation and use of lifting shackles should be performed by qualified riggers familiar with ASME B30.26 and applicable OSHA standards for rigging hardware. Always inspect the shackle for cracks, deformation, or corrosion before each use. Thread the screw pin fully and back off no more than one turn, then secure with a cotter pin if the application requires it to prevent unscrewing under load. Never side-load or point-load a shackle beyond the manufacturer-rated WLL.
