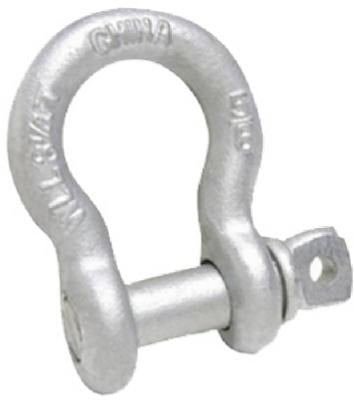

Apex Tools Group Llc T9641035 Screw Pin Anchor Shackle

Product Description

The APEX TOOLS GROUP LLC T9641035 is a 5/8-inch forged, galvanized screw pin anchor shackle rated for a 3-1/4 ton working load limit (WLL). Designed for rigging, lifting, and load-securing applications, this shackle features a threaded screw pin closure that allows for quick connection and removal without special tools. The galvanized finish provides corrosion resistance in outdoor and marine-adjacent environments. Each unit is individually UPC tagged for easy inventory tracking. Sold in a package of 25 units, making it practical for contractors and supply houses maintaining stock for ongoing rigging jobs.

This screw pin anchor shackle is suited for general rigging, hoisting, and load securement in construction, industrial, and utility applications. The anchor (bow) shackle body accommodates multi-leg slings and off-angle loads better than a chain shackle, making it a common choice when connecting wire rope, chain, or synthetic slings to a load or lifting point. It is appropriate for both permanent and temporary rigging setups where the pin is secured against rotation during use.

Key Features

• 3-1/4 ton working load limit for heavy rigging and lifting tasks
• 5/8-inch body size for compatibility with standard rigging hardware of that diameter class
• Forged construction for consistent strength and structural integrity under load
• Hot-dip galvanized finish resists corrosion in outdoor and industrial environments
• Screw pin design allows tool-free installation and removal
• UPC tagged per unit for inventory management; sold in 25-count package

Compatibility

Designed as a standard 5/8-inch screw pin anchor shackle for use with wire rope, chain, and synthetic sling rigging assemblies requiring a 3-1/4 ton WLL-rated connection point.

Installation Notes

Rigging hardware installation should be performed by qualified riggers following applicable ASME B30.26 standards for rigging hardware. Before use, inspect each shackle for deformation, cracks, or corrosion that could compromise rated capacity. Thread the screw pin fully and, where required by the rigging plan, mouse the pin with wire to prevent unwinding under load. Never side-load a shackle beyond its rated in-line capacity or exceed the stamped working load limit.
