Apex Tools Group Llc T7655052N Swivel Eye Single Pulley

Product Description

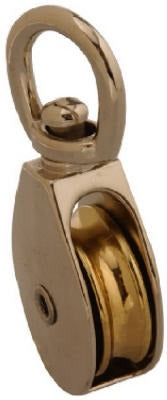

The APEX TOOLS GROUP LLC T7655052N is a 1/2 inch swivel eye single pulley designed for use with 5/16 inch rope. This lightweight rope block features a rotating swivel eye mount that allows the pulley to orient freely with load direction, reducing line twist and wear during rigging operations. With a working load limit (WLL) of 25 pounds, it is suited for light-duty lifting, guiding, and redirecting rope runs in utility, construction, and general trade applications. Each unit ships tagged with load rating information for job-site compliance and inspection purposes.

This swivel eye single pulley is used in light-duty rigging setups where a single sheave block is needed to redirect or guide a 5/16 inch rope. Typical applications include small equipment hoists, rope-and-pulley redirects on scaffolding, and utility line routing in residential and light commercial settings. The swivel eye design makes it adaptable to anchor points where fixed-eye blocks would bind or create undesirable line angles.

Key Features

• 1/2 inch sheave size matched to 5/16 inch rope diameter
• Swivel eye mount allows free rotation to follow load direction
• Working load limit of 25 pounds clearly rated for safe use
• Factory tagged with WLL information for inspection and compliance
• Sold in a package quantity of 10 units per order

Compatibility

Designed for use with 5/16 inch rope, reference designation 0173. Verify rope diameter and WLL requirements before installation to confirm fitment for the intended application.

Installation Notes

Installation of this pulley should be performed by a qualified tradesperson familiar with rigging hardware and applicable load ratings. Always inspect the anchor point, swivel eye, and rope condition before applying any load. Never exceed the stated working load limit of 25 pounds. Follow all applicable OSHA and ASME B30 rigging safety guidelines when incorporating this block into a lifting or redirecting system.
