Apex Tool Group Llc X46N Extension Wood Rule 6 Foot

Product Description

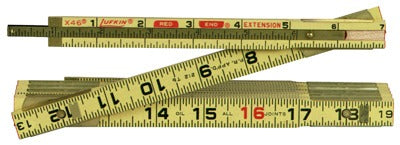

The APEX TOOL GROUP LLC X46N is a 6-foot red end extension wood rule designed for inside-read measurement applications. It features a graduated metal slide rule that extends up to 6 inches, allowing technicians and tradespeople to capture inside dimensions accurately. The slide runs under friction in a T-slot at each end, preventing the slide from falling out during use. Graduated to 1/16 inch on both sides and both edges, this rule also marks 16-inch stud centers in red for fast layout reference. It is suited for carpenters, contractors, and trade professionals who need a reliable folding rule for framing, rough-in, and finish work.

The X46N is intended for residential and light commercial construction and remodeling applications. Its inside-read capability makes it especially useful for measuring window and door rough openings, cabinet openings, and other confined spaces where a standard tape measure is difficult to seat accurately. The red stud-center markings support fast layout on standard 16-inch on-center framing.

Key Features

• 6-foot overall length for extended reach
• Metal slide rule extends up to 6 inches for inside measurements
• Friction-controlled T-slot keeps slide secure at each end
• Graduated to 1/16 inch on both sides and both edges
• 16-inch stud centers marked in red for quick framing layout
• Red end finish for easy identification

Compatibility

Designed as a standard 6-foot extension wood rule suitable for general construction, rough-in framing, and finish carpentry measurement tasks.

Installation Notes

This is a hand measurement tool and requires no installation. Handle the wooden rule sections with care to avoid cracking or warping, which can affect reading accuracy. Keep the friction slide clean and free of debris to maintain consistent tension in the T-slot. No power tools or fasteners are required for use.

Technical Specifications

• Length: 6 feet
• Slide Extension: up to 6 inches
• Graduation: 1/16 inch
• Stud Center Marking: 16 inches, printed in red
• Read Type: Inside read
• Weight: 2.3 pounds
• Unit of Measure: EA
• Package Quantity: 6

Standard Information

• Brand: APEX TOOL GROUP LLC
• Manufacturer Part Number: X46N
