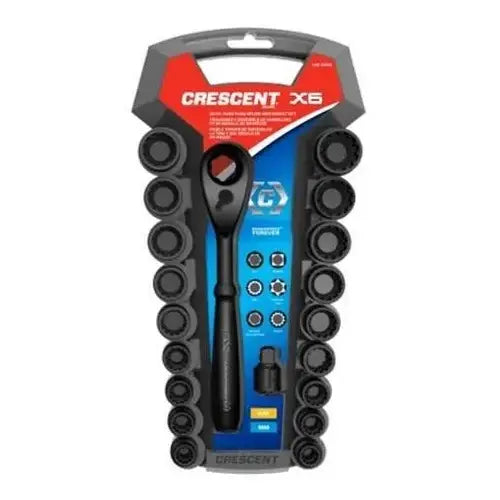

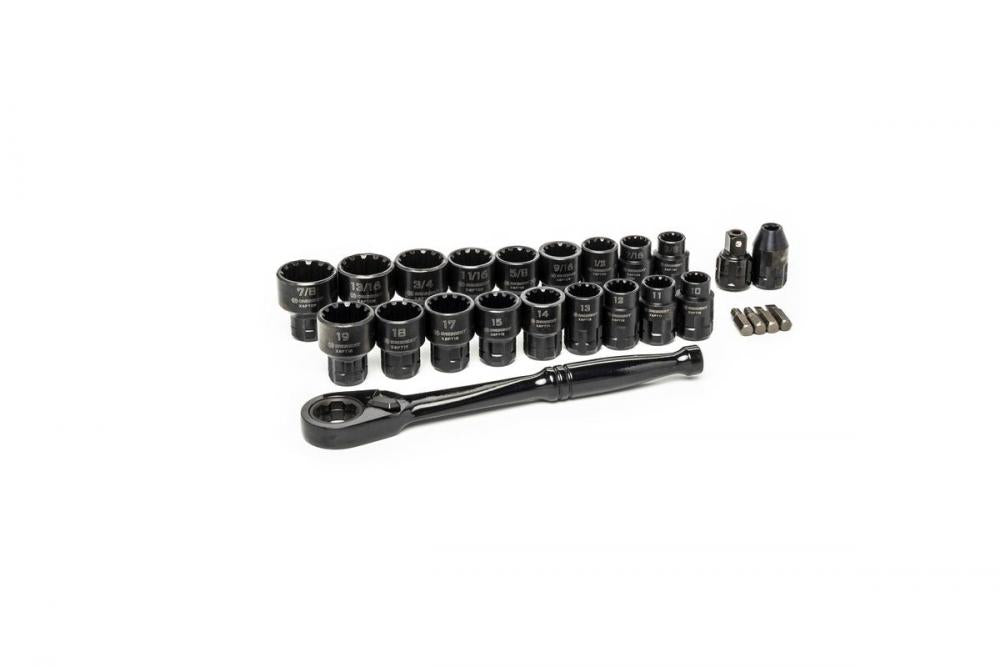

Apex Tool Group CX6PT25 Ratchet and Socket Set 25 piece 3/8 inch Drive SAE

Product Description

The APEX TOOL GROUP CX6PT25 is a 25-piece Pass-Thru X6 Standard Spline Mechanics Tool Set. This set features a 3/8 inch drive ratchet and sockets designed with an X6 box end, allowing it to grip six different types of fasteners. The pass-thru sockets functionally replace both deep and standard sockets, providing access to restricted fasteners. It includes both SAE and Metric sizes.

• X6 design in the box end grips 6 different types of fasteners
• Pass-thru sockets replace deep and standard sockets for versatile use
• Low-profile ratchet and socket combinations access restricted fasteners

Product Highlights

Enhanced strength and a 5-degree ratcheting arc provide improved access and performance.

Product Information

Standard Information

• Brand: APEX TOOL GROUP
• Manufacturer Part Number: CX6PT25
• Country of Origin: Taiwan

Technical Specifications

• MPN: CX6PT25
• Product Type: Socket and Ratchet Set
• Brand: Crescent
• Size: One Size
• Number of Items: 1
• Pkg Quantity: 1
• Tip Type: Square
• Drive Size: 3/8 inch
• Packaging: Carded
• Includes: Handle
• Part Status: Active
• Type: Socket Set
• Finish: Black Oxide
• Number of Pieces: 25
• Sub Brand: X6
• Metric or SAE: Metric and SAE
• Impact Rated: No
• Material: Alloy Steel
• Number of Points: 12 Point
• Nomenclature: CX6PT25/20 X6 SOCKET SET 25PC
• Drive Type: Spline

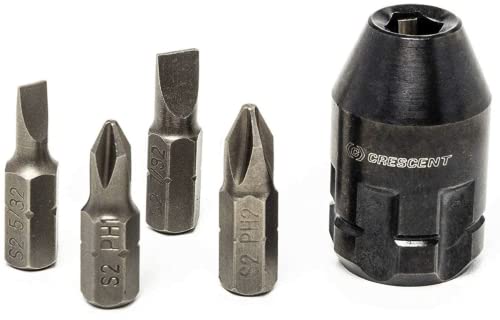

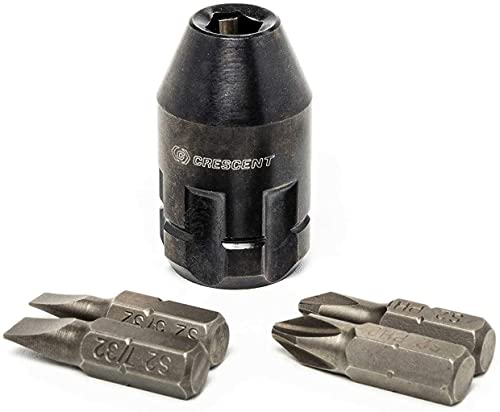

• Contents: Ratchet Adapter 9 SAE Sockets 9 Metric Sockets Socket Adapter 4 Bits
• Case Type: Blow Molded
• ANSI Specification: Meets or Exceeds
• ASME Specification: Meets or Exceeds
• Fastener Size: 3/8 in 7/16 in 1/2 in 9/16 in 5/8 in 11/16 in 3/4 in 13/16 in 7/8 in;10mm 11mm 12mm 13mm 14mm 15mm 17mm 18mm 19 mm
• Length Format: Standard
• Marking Style: Laser Etched
• Quick Release: No
• Ratchet Handle Type: Standard
• Ratchet Head Style: Pass-Thru
• Set Size Range Max: 7/8 in 19mm
• Set Size Range Min: 3/8 in 10mm
• Tooth Count: 72
