Apex OCN1296SF590N Replacement Blade 100 Ft D1 Atlas

Product Description

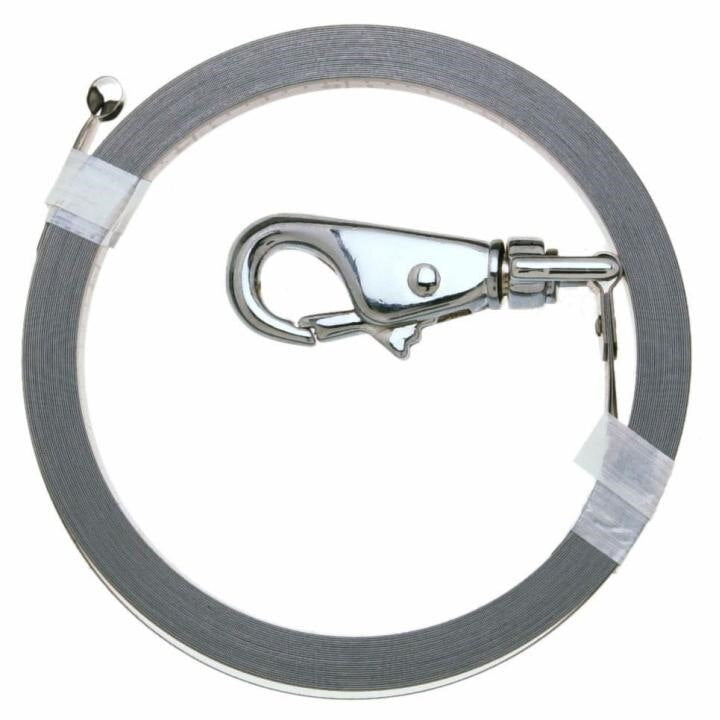

The APEX OCN1296SF590N is a replacement blade designed for Atlas Chrome Clad and Nubian Double Duty tape measure reels. The blade runs 100 feet in length and measures 0.5 inches wide, formatted to the D1 blade style. Built as a direct drop-in replacement, this blade extends the working life of compatible tape measure housings without requiring a full tool replacement. At 2.2 pounds packaged, it is a practical stock item for field crews and shop inventory alike. Licensed contractors and tool-service technicians who maintain tape measure fleets will find this a straightforward consumable replenishment.

This replacement blade is intended for use with Atlas Chrome Clad and Nubian Double Duty series tape measure housings. The D1 blade style designation identifies the blade profile and winding geometry required for correct seating and retraction in these reels. It suits residential and commercial jobsite applications where long-distance measurements are routine, including layout work in construction, mechanical, plumbing, and electrical trades. Proper blade style matching is essential before installation to confirm fitment with the target housing.

Key Features

• 100-foot blade length for extended layout and measurement tasks
• D1 blade style profile engineered for Atlas Chrome Clad and Nubian Double Duty housings
• 0.5-inch blade width provides rigidity and standout across long pulls
• Replacement-only blade extends housing service life without full tool replacement
• Sold individually for single-unit replenishment or bulk stocking

Compatibility

Designed as a replacement blade for Atlas Chrome Clad and Nubian Double Duty tape measure housings requiring a D1-style blade. Confirm blade style and housing model before installation.

Installation Notes

Blade replacement on tape measure reels should be performed by a qualified technician familiar with the housing disassembly procedure for the specific reel model. Fully retract and secure the existing blade before beginning disassembly to prevent snap-back injury. Verify the replacement blade style matches the housing specification before winding. Follow the tool manufacturer's reassembly sequence to ensure proper spring tension and retraction function.

Technical Specifications

• Blade Length: 100 ft
• Blade Style: D1
• Blade Width: 0.5 inches
• Overall Length: 9 inches
• Overall Width: 6.1 inches
• Overall Height: 1.8 inches
• Weight: 2.2 pounds
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OCN1296SF590N
