Apex OCN1295SF590N Replacement Tape Measure Blade 75 Ft

Product Description

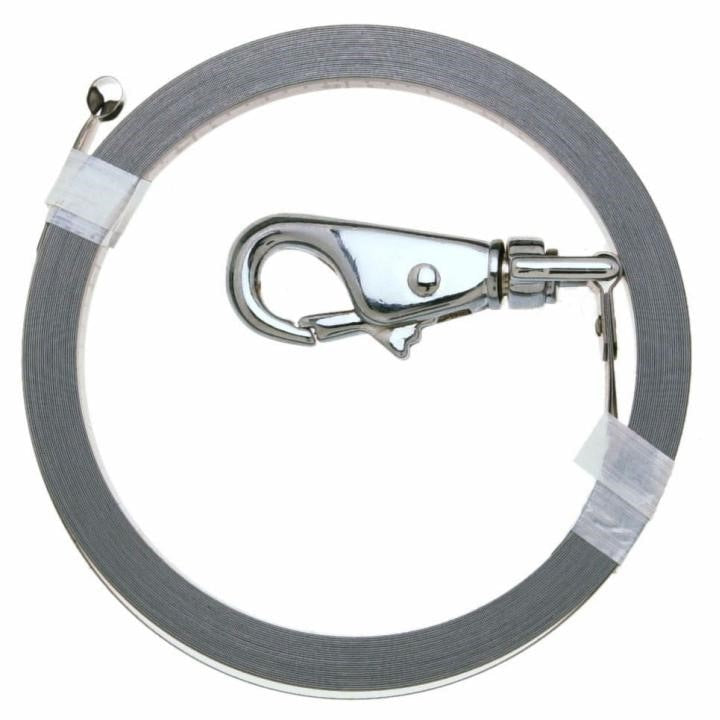

The APEX OCN1295SF590N is a replacement tape blade designed for Atlas Chrome Clad and Nubian Double Duty tape measures distributed under the Crescent Lufkin line. The blade runs 75 feet in length and measures 0.5 inches wide, following a D1 blade style profile. It is a direct drop-in replacement intended to restore a worn or damaged tape measure to working condition without replacing the entire housing. HVAC technicians, plumbers, electricians, and general trade contractors who rely on long-run measurements will find this blade suited to large-scale layout and rough-in work where a compact replacement is more economical than a full tool swap.

This blade fits residential and commercial trade applications where extended reach measurements are required. It is commonly installed in tape measure housings used for layout work on HVAC duct runs, pipe rough-ins, conduit runs, and structural framing. The overall assembled dimensions of the blade cartridge are 5.1 inches in length, 5.2 inches in width, and 1.1 inches in height, making it a compact replacement unit that fits within standard Atlas family housings.

Key Features

• 75-foot blade length suited for large-scale layout and long-run trade measurements
• D1 blade style for compatibility with Atlas Chrome Clad and Nubian Double Duty housings
• 0.5-inch blade width provides rigidity during extended reach use
• Compact cartridge dimensions of 5.1 x 5.2 x 1.1 inches for housing fitment
• Sold individually as a direct replacement unit

Compatibility

Designed as a replacement blade for Atlas Chrome Clad and Nubian Double Duty tape measure housings in the Crescent Lufkin Atlas family line.

Installation Notes

Replacement tape blades are typically serviced by qualified tradespeople familiar with the specific tool housing mechanism. Before beginning blade replacement, fully retract any remaining blade and release tension on the internal spring assembly per the tool manufacturer's service guidance. Avoid forcing the blade during installation, as this can damage the spring cartridge or housing latch. Verify that the replacement blade model matches the housing family before disassembly.

Technical Specifications

• Blade Length: 75 ft
• Blade Style: D1
• Blade Width: 0.5 inches
• Overall Length: 5.1 inches
• Overall Width: 5.2 inches
• Overall Height: 1.1 inches
• Weight: 1.7 pounds
• Family Name: Atlas
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OCN1295SF590N
