Apex OCN1294SMEF5N Replacement Blade 66 Ft D3

Product Description

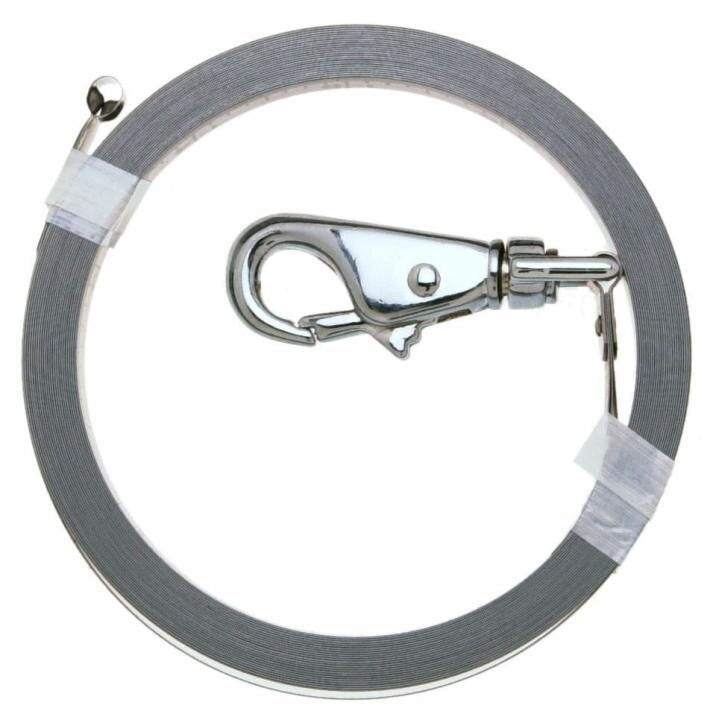

The APEX OCN1294SMEF5N is a replacement tape measure blade engineered for Atlas Chrome Clad and Nubian Double Duty tape measure housings. The blade measures 66 feet in length and 0.5 inches wide, with a D3 blade style profile. This replacement blade allows technicians and tradespeople to restore a worn or damaged tape measure to full function without replacing the entire tool housing. It is a direct-fit component for compatible Atlas family housings and is sold as a single blade unit.

This replacement blade is suited for general trade use across construction, mechanical, electrical, and plumbing service environments where a 66-foot measuring range is required. The D3 blade style is matched to specific Atlas series housings. Installers working on layout, rough-in measurement, or long-run measurements will find this blade appropriate for those applications. The overall blade assembly unit measures 5.2 inches in length, 5 inches in width, and 1.1 inches in height when housed.

Key Features

• 66-foot blade length for extended measuring range
• D3 blade style for compatibility with Atlas Chrome Clad and Nubian Double Duty housings
• 0.5-inch blade width for consistent readability along the full length
• Direct replacement design restores full tape measure function without full-unit replacement
• Compact housed dimensions of 5.2 x 5 x 1.1 inches for standard tool storage

Compatibility

Designed as a replacement blade for Atlas Chrome Clad and Nubian Double Duty tape measure housings in the Atlas family. Confirm housing model accepts the D3 blade style before installation.

Installation Notes

Blade replacement should be performed by a qualified technician familiar with tape measure disassembly. Ensure the housing spring mechanism is fully relaxed before removing the existing blade to prevent injury from sudden recoil. Follow the housing manufacturer's disassembly instructions and confirm the blade style and width match the housing specifications before reinstalling the end cap and locking components.

Technical Specifications

• Blade Length: 66 ft
• Blade Style: D3
• Blade Width: 0.5 inches
• Overall Length: 5.2 inches
• Overall Width: 5 inches
• Overall Height: 1.1 inches
• Weight: 1.6 pounds
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OCN1294SMEF5N
