Apex OCN1290SF590N Tape Measure Blade 25 Ft

Product Description

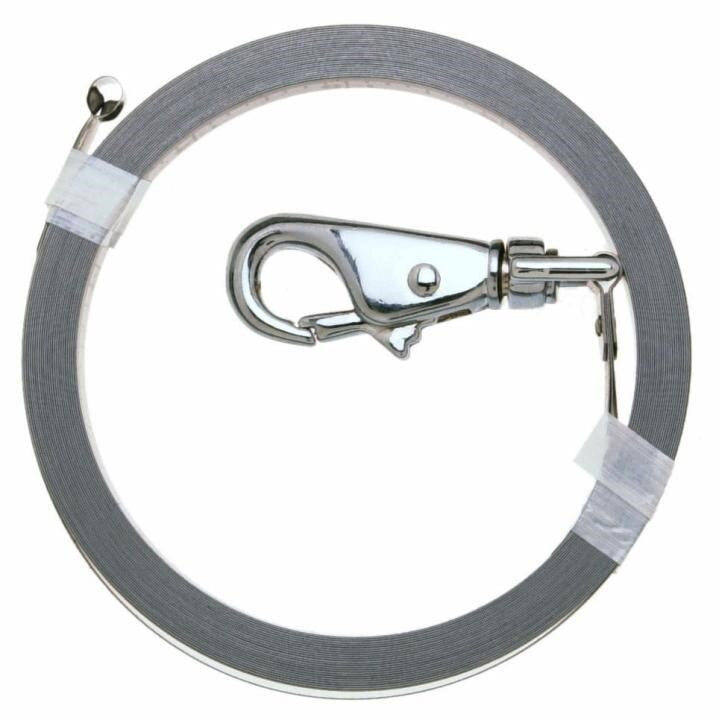

The APEX OCN1290SF590N is a replacement tape measure blade engineered for Atlas Chrome Clad and Nubian Double Duty tape measure housings. The blade measures 25 feet in length and 0.5 inches in width, following the D1 blade style profile. Designed as a direct drop-in replacement, it restores full functionality to a worn or damaged measuring tool without requiring a complete unit replacement. Installers, tradespeople, and service techs working in tight schedules will find this blade a practical way to extend the service life of an existing tape measure.

This replacement blade is intended for use with compatible Atlas series tape measure housings, specifically those accepting a D1-style blade in the 0.5-inch width configuration. It suits general trade use across HVAC, plumbing, electrical, and construction applications where frequent tape measure use leads to blade wear or breakage. The overall housing dimensions are 5.9 inches in length, 4.6 inches in width, and 1.3 inches in height, confirming fitment within standard Atlas-compatible cases.

Key Features

• 25-foot blade length for extended reach on layout and rough-in work
• D1 blade style profile for direct compatibility with Atlas series housings
• 0.5-inch blade width provides rigidity and standout for solo measuring
• Chrome Clad and Nubian Double Duty replacement designation ensures correct fitment
• Sold individually as a single replacement blade unit

Compatibility

Designed as a replacement blade for Atlas Chrome Clad and Nubian Double Duty tape measure housings that accept a D1-style blade with a 0.5-inch width.

Installation Notes

Blade replacement should be performed by a qualified user following the manufacturer guidance for the specific tape measure housing. Power tools and electrical sources in the work area should be secured before disassembling the housing. Use care when handling the blade edge during installation to avoid laceration. Confirm the replacement blade is fully seated and locked before returning the tool to service.

Technical Specifications

• Blade Length: 25 feet
• Blade Width: 0.5 inches
• Blade Style: D1
• Overall Length: 5.9 inches
• Overall Width: 4.6 inches
• Overall Height: 1.3 inches
• Weight: 0.6 pounds
• UOM: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OCN1290SF590N
