Apex OC1290SF590N Atlas Chrome Clad Blade 25 Ft D4

Product Description

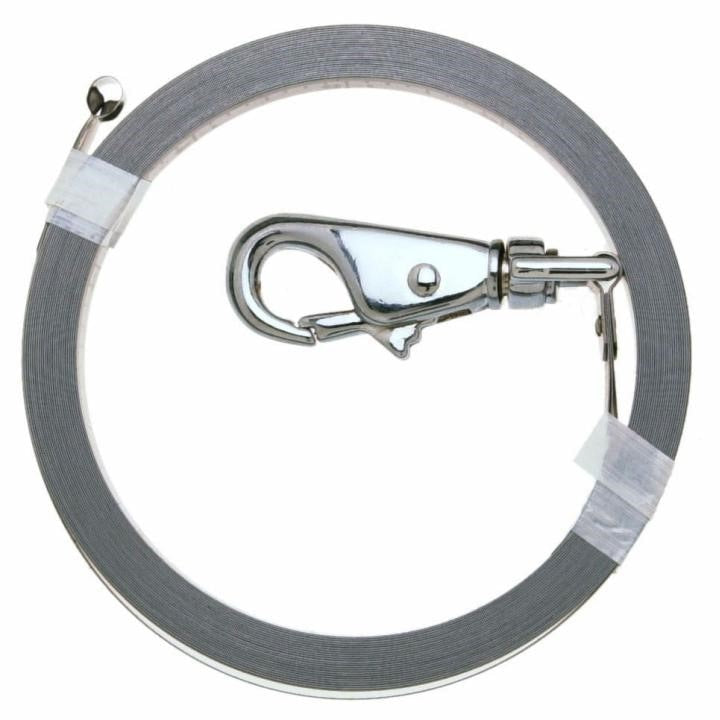

The APEX OC1290SF590N is a 25-foot Atlas Chrome Clad replacement blade designed for use with compatible tape measures in the Atlas product line. The blade features a D4 style profile and measures 0.5 inches wide, delivering the durability and standout performance trade professionals expect on the job site. Chrome cladding protects the blade surface against corrosion and wear, extending service life in demanding field conditions. This is a direct replacement component intended for restoring a worn or damaged tape measure to full working condition without replacing the entire tool body. Surveyors, contractors, and general tradespeople performing precise layout and measurement work will find this blade suitable for daily use.

This replacement blade fits Atlas-series tape measures requiring a D4 blade style and 25-foot length. It is suited for residential and commercial construction, framing, plumbing rough-in layout, and general mechanical trade measurement tasks. The 0.5-inch blade width is a standard dimension used across a wide range of tape measure housings in this product family. Installers replacing a damaged blade in an existing tool should confirm the blade style and housing compatibility before installation.

Key Features

• 25-foot blade length for extended reach on large layout tasks
• D4 blade style for compatibility with Atlas-series tape measure housings
• Chrome Clad surface finish resists corrosion and blade wear
• 0.5-inch blade width — standard dimension for this product family
• Sold individually as a direct replacement component
• Compact housing dimensions: 5.4 inches long, 4.6 inches wide, 1.3 inches tall

Compatibility

Designed as an OEM-style replacement blade for Atlas Chrome Clad tape measure housings requiring a D4 blade style in a 25-foot length. Confirm blade style and housing model before installation.

Installation Notes

Blade replacement on tape measures should be performed by a qualified technician familiar with the specific tool housing design. Refer to the manufacturer service documentation for the correct disassembly procedure for your housing model. Keep tension spring components under control during blade removal and installation to avoid injury. Do not force the blade spool into the housing if resistance is encountered — confirm proper alignment first.

Technical Specifications

• Blade Length: 25 feet
• Blade Style: D4
• Blade Width: 0.5 inches
• Overall Length: 5.4 inches
• Overall Width: 4.6 inches
• Overall Height: 1.3 inches
• Weight: 0.65 pounds
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: OC1290SF590N
