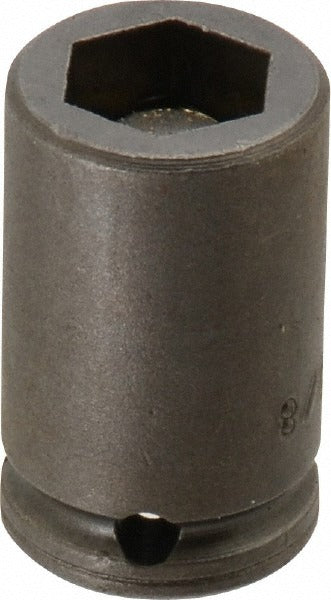

Apex M1P12 Impact Socket 1/4 in Drive 3/8 in Hex 6-point

Product Description

The APEX M1P12 is a 6-point impact socket designed for use with 1/4 inch drive impact tools. It accepts a 3/8 inch hex fastener and measures 1 inch overall length, placing it in the standard-length category. Constructed from alloy steel, the M1P12 is built to handle the rotational stress and impact loading common in power-tool-driven fastening applications. A built-in magnetic feature holds the fastener in the driving position during use, which reduces dropped hardware and repositioning time. Rated to ANSI and DIN standards, this socket is suited for self-drilling and tapping screw applications in trade and production environments. Licensed electricians, HVAC technicians, and general mechanical contractors are the typical end users.

The M1P12 is an SAE-standard socket intended for use with 1/4 inch drive impact wrenches, nut runners, and cordless impact drivers. Its magnetic retention is particularly useful when starting fasteners in hard-to-reach areas or when driving screws in a vertical-downward orientation where a dropped fastener would cause delays. The standard length profile fits most panel, equipment, and sheet metal fastening tasks encountered in mechanical and electrical trade work. The socket is not insulated and is not rated non-sparking, so it is not intended for live-electrical or explosive-atmosphere service.

Key Features

• Magnetic socket retains fastener in driving position, including straight-down vertical applications
• 6-point hex drive geometry for reduced fastener rounding under impact torque
• Alloy steel construction rated for impact tool use
• Standard 1 inch overall length for general-purpose fitment
• Meets ANSI and DIN dimensional standards
• Rated for self-drilling and tapping screw applications (SAE sizing)

Compatibility

Designed for use with 1/4 inch drive impact wrenches, cordless impact drivers, and nut runners accepting standard SAE hex sockets. Sized for 3/8 inch hex fasteners including self-drilling and tapping screws.

Installation Notes

Install and remove by a qualified tradesperson using a 1/4 inch drive impact tool rated for the fastener torque requirement. De-energize and lock out equipment before driving fasteners into electrical enclosures or mechanical assemblies per applicable NFPA 70E and site safety procedures. This socket is not insulated and must not be used on energized conductors or terminals. Inspect the socket for cracks or wear before each use and replace if deformation is present.
