Apex M1P10 Impact Socket 5/16 feet'

Product Description

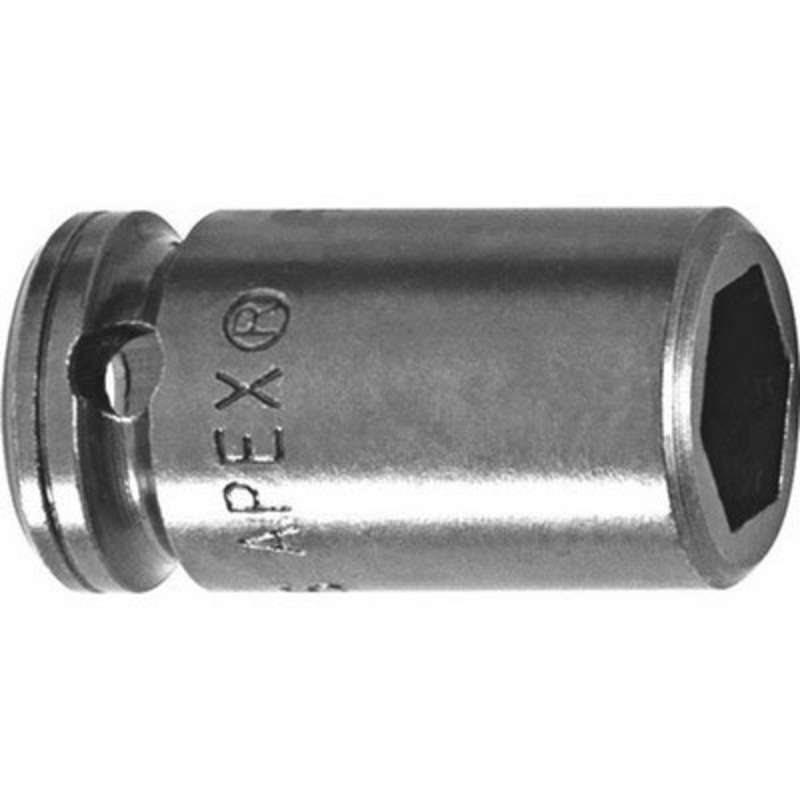

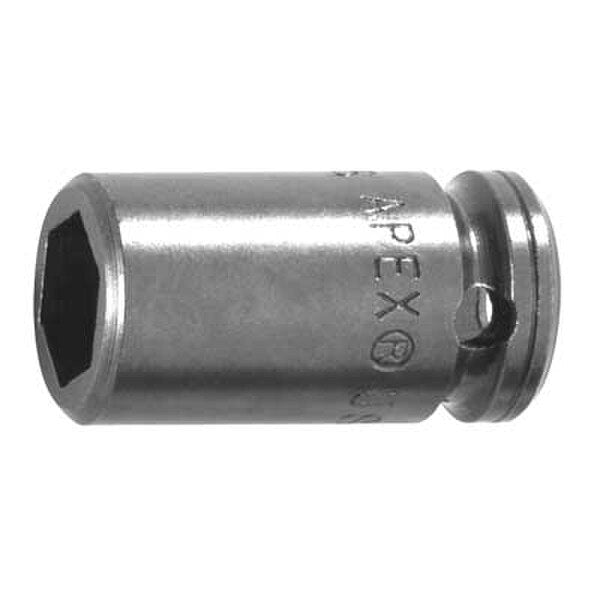

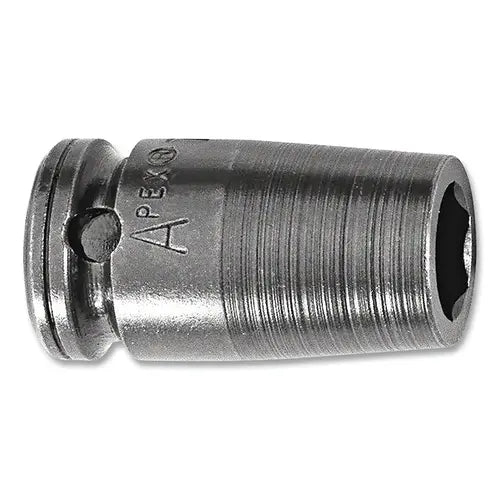

The Apex M1P10 impact socket is designed for use with self-drilling and tapping screws. This 5/16'' magnetic standard socket is manufactured for high-impact use and heat treated for added durability. It holds the fastener in driving position, even when working straight down.

• Overall Length: 7/8in
• Hex Opening: 5/16in
• Opening Depth: 3/16in

Product Highlights

The Apex M1P10 is a durable and long-lasting bit/fastener tool suitable for industrial applications.

Product Information

Standard Information

• Brand: APEX
• Manufacturer Part Number: M1P10
• Country of Origin: US

Technical Specifications

• Material: Tool steel
• Locking Type: Pin
• Measuring System: Inch
• Nominal Width: 1/2 in (drive side); 1/2 in (opening side)
• Nominal Opening Size: 5/16 in
• Drive Type: Square; Hex
• UNSPSC: 27111704
• Drive Size: 1/4 in
• Overall Length [Nom]: 7/8 in
• No. of Points: 6
• Style: Magnetic
• Drive Style: Hex
• Insulated: No
• Number of Points: 6
• Standards Met: ANSI, SAE, DIN
• Length Type: Standard
• Non-Sparking: No
• Overall Length (Inch): 7/8
• Product Service Code: 5120
• UNSPSC Code: 27111704
• Socket Size (Inch): 5/16
• Manufacturer: Apex
• Overall Length A (Imperial): 7/8
• Diameter Nose End B (Imperial): 1/2
• Diameter Drive End C (Imperial): 1/2
• Product Type: Fixed Magnetic Impact Socket
• Socket Points: 6
• Socket Size: 5/16in
• Material Category: Metal
• Finish: Black Oxide
• Hex Size: 5/16in
• For Use With: Sheet Metal Screws, Self-Drilling Screws, Self Tapping Screws
• Applications: Industrial
