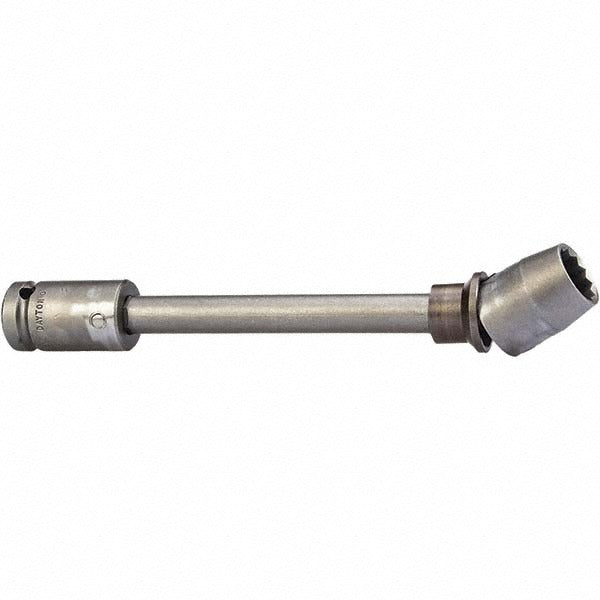

Apex KNS-320-D-6 Universal Joint 5/8 Male 1/2 Female Sae

Product Description

The APEX KNS-320-D-6 is a universal joint designed to transmit rotational motion between shafts that are not in perfect alignment. The male end measures 5/8 inch and the female end measures 1/2 inch, allowing connection across two different shaft sizes within a single coupling. It supports a maximum operating angle of 30 degrees, making it suitable for drive applications where moderate angular misalignment is present. This joint meets SAE standards and is installed by mechanical technicians, maintenance professionals, and equipment service specialists working on drive shaft assemblies and power transmission systems.

This universal joint fits replacement applications in mechanical drive systems where a 5/8 inch male to 1/2 inch female cross-size coupling is required. It is suited for use in equipment maintenance, industrial machinery service, and tool drive applications where angular flexibility in the drivetrain is necessary. The SAE-compliant design ensures compatibility with standard component specifications across a range of service environments.

Key Features

• 5/8 inch male end and 1/2 inch female end for cross-size shaft coupling
• Maximum operating angle of 30 degrees for flexible shaft alignment
• SAE standard compliance for consistent dimensional and performance specifications
• Compact universal joint design for straightforward replacement installations

Compatibility

Designed as an OEM-style replacement universal joint for mechanical drive and power transmission assemblies requiring a 5/8 inch male to 1/2 inch female coupling configuration.

Installation Notes

Installation should be performed by a qualified mechanical technician. Disconnect and lock out all power to the equipment before removing the existing joint or installing the replacement. Ensure both mating shafts are clean and free of burrs before seating the joint. Verify alignment and confirm the operating angle does not exceed 30 degrees during normal operation to prevent premature wear.
