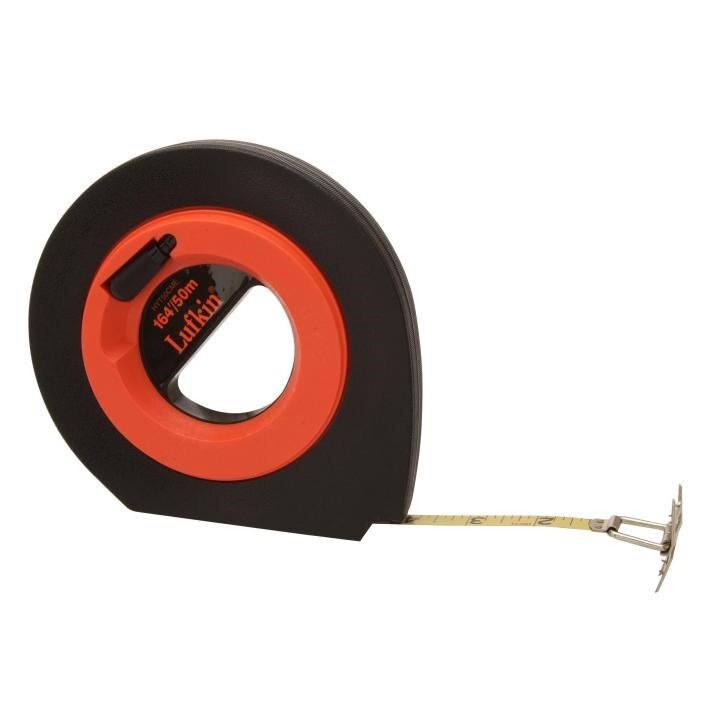

Apex HYT50CME Hi-viz Speedwinder Tape Measure 164 Ft

Product Description

The APEX HYT50CME is a metric Hi-Viz Speedwinder tape measure built for trade professionals who need fast blade retraction and high-visibility markings in the field. The blade runs 164 ft in length and is constructed from steel with a yellow clad finish that improves readability in low-light or cluttered job-site conditions. At 0.375 inches wide, the B14-style blade balances reach and rigidity. The compact housing measures 8.7 inches long and 1.2 inches tall, keeping the tool manageable in a tool belt or pouch. Total unit weight is 1.5 pounds. Metric graduation makes this tape well-suited for contractors, survey crews, and inspectors working to metric specifications.

The HYT50CME is designed for layout and measurement tasks on commercial and residential job sites where extended-range measuring is required. The Speedwinder mechanism delivers faster blade return than standard recoil tapes, reducing downtime during repetitive layout work. Typical applications include structural layout, rough framing dimensions, site surveying, and utility runs where metric readings are required. The yellow clad blade finish supports quick mark reading against concrete, lumber, and steel substrates.

Key Features

• 164 ft steel blade with yellow clad finish for high visibility
• B14 blade style at 0.375 inches wide for reach and stability
• Speedwinder fast-retract mechanism reduces blade return time
• Metric graduation for metric-specification work
• Compact housing: 8.7 inches long, 1.2 inches tall
• Lightweight at 1.5 pounds for extended carry comfort

Compatibility

Designed as a standalone extended-range metric tape measure suitable for general construction, surveying, and inspection applications requiring a 164 ft measuring range.

Installation Notes

No installation is required for this hand tool. Inspect the blade for kinks or burrs before use, as damage can affect measurement accuracy and cause blade retraction issues. When retracting a long blade, guide it manually near the housing slot to prevent blade buckle. Store the tape away from moisture to protect the steel blade from corrosion.

Technical Specifications

• Blade Length: 164 ft
• Blade Width: 0.375 inches
• Blade Material: Steel
• Blade Finish: Yellow Clad
• Blade Style: B14
• Measurement Type: Metric
• Overall Length: 8.7 inches
• Overall Height: 1.2 inches
• Overall Width: 6.95 inches
• Weight: 1.5 pounds
• UPC: 037103003461

Standard Information

• Brand: APEX
• Manufacturer Part Number: HYT50CME
