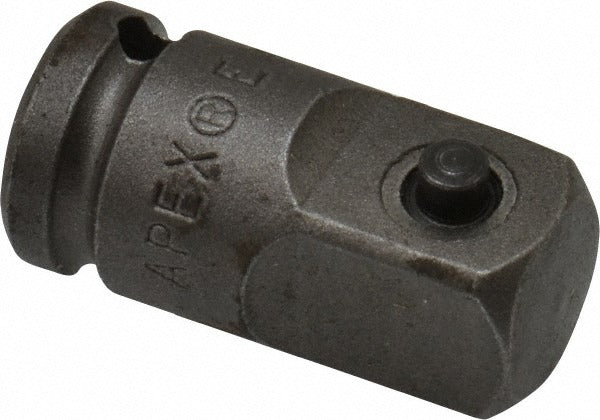

Apex EX-372 Socket Drive Adapter 3/8 to 1/4 Inch

Product Description

The APEX EX-372 is a square drive socket adapter designed to convert a 3/8 inch male square drive to a 1/4 inch female square drive. At 1 inch overall length, this compact adapter bridges common ratchet and torque wrench drive sizes, allowing a technician to use 1/4 inch drive sockets on a 3/8 inch drive tool without switching handle sets. It features a pin lock retention system to secure the attached socket during use. Built to ANSI standards, this adapter suits precision fastening tasks across HVAC, plumbing, electrical, and general mechanical service work where mixed drive sizes are a routine part of the job.

This adapter is suited for service technicians and installers who carry both 3/8 inch and 1/4 inch drive socket sets and need to interchange them on a single handle. Typical applications include equipment panel access, equipment mounting hardware, and confined-space fastening where a smaller socket head is needed but a larger drive tool is already in hand. The pin lock design adds retention security when working in overhead or hard-to-reach positions.

Key Features

• Converts 3/8 inch male square drive to 1/4 inch female square drive
• 1 inch overall length for compact reach in tight spaces
• Pin lock retention keeps sockets secured during use
• Meets ANSI standards for drive tool adapters
• Compatible with standard ratchets, torque wrenches, and extension bars on 3/8 inch drive

Compatibility

Designed as an OEM-style drive adapter compatible with standard 3/8 inch square drive tools and 1/4 inch square drive socket sets meeting ANSI specifications.

Installation Notes

Installation requires no special tools beyond the drive tool itself. Ensure the pin lock engages fully before applying torque to prevent socket ejection. Inspect the adapter for wear or deformation before each use, particularly if subjected to high-cycle or impact use. This adapter is intended for hand-drive and non-impact torque applications unless otherwise rated by the technician based on job requirements.
