Apex CN1295SME590N Oil Gauging Tape 75 Ft Steel

Product Description

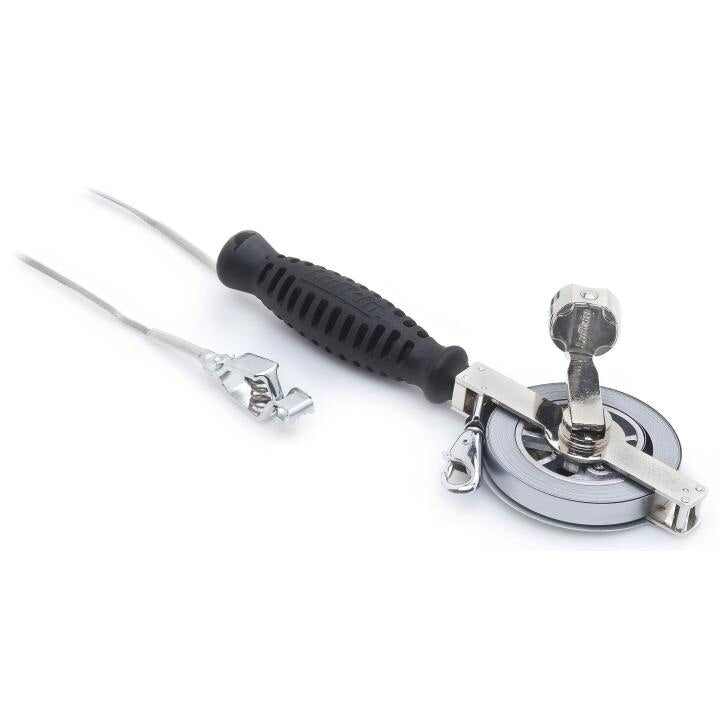

The APEX CN1295SME590N is an Atlas Double Duty Oil Gauging Tape designed for measuring liquid levels in fuel oil storage tanks. The blade is constructed from steel with a Chrome Clad and Nubian finish, giving it corrosion resistance suited for repeated contact with petroleum products. The blade measures 75 feet in length and 0.5 inches in width, formatted in the D3 blade style with a 590 bob cut. This tool is used by petroleum equipment technicians, fuel oil service professionals, and tank inspection crews who need accurate ullage and innage readings in the field.

This gauging tape is used in commercial and industrial fuel oil storage applications where tank level verification, delivery confirmation, or inventory measurement is required. The double duty design supports both innage and ullage measurements from a single tape, reducing the need for separate tools on a service call. It is appropriate for use with standard oil gauging bobs and is suited to above-ground and below-ground tank gauging operations.

Key Features

• 75-foot steel blade provides reach for large-capacity storage tanks
• Chrome Clad and Nubian blade finish resists corrosion from petroleum contact
• D3 blade style with 590 bob cut for precise liquid level measurement
• 0.5-inch blade width for compatibility with standard gauging slots and thief hatches
• Double duty design allows both innage and ullage readings

Compatibility

Designed for use in standard oil tank gauging applications requiring a 75-foot steel tape with D3 blade style and 590 bob cut configuration.

Installation Notes

Oil gauging tapes are handled by petroleum equipment technicians and fuel oil service professionals. Before gauging, confirm the tank vent is open and follow all applicable NFPA and local fire codes when working around fuel oil storage. Lower the tape steadily to avoid splashing and allow the bob to settle before taking a reading. Clean and dry the tape after each use to extend blade life.

Technical Specifications

• Blade Length: 75 ft
• Blade Width: 0.5 inches
• Blade Material: Steel
• Blade Finish: Chrome Clad and Nubian
• Blade Style: D3
• Bob Cut: 590
• Package Dimensions: 9.5 inches x 6.2 inches x 1.8 inches
• Weight: 2.88 pounds
• UOM: Each
• UPC: 037103122124

Standard Information

• Brand: APEX
• Manufacturer Part Number: CN1295SME590N
