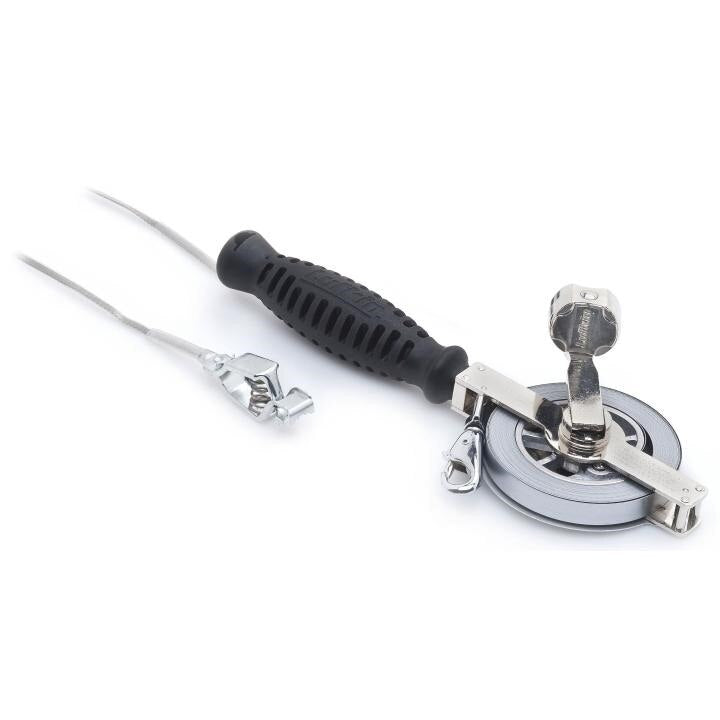

Apex CN1290SF590N Oil Gauging Tape 25 Ft Steel

Product Description

The APEX CN1290SF590N is an Atlas Double Duty Oil Gauging Tape designed for measuring liquid levels and tank depths in petroleum storage and fuel management applications. The tape features a chrome clad and Nubian dual-finish steel blade in Style D1, 0.5 inches wide and 25 feet long, making it a practical tool for field technicians who need reliable gauging in a single instrument. The chrome clad side serves for innage measurement while the Nubian finish addresses outage measurement, eliminating the need to carry two separate tapes. The overall case length is 9 inches and the unit weighs 1.6 pounds.

This oil gauging tape is used in industrial and commercial fuel storage settings where accurate tank measurement is required. Typical users include fuel delivery technicians, tank service professionals, and petroleum equipment maintenance crews. The 590 bob cut designation indicates the style of the plumb bob attached for proper tape suspension during measurement. This unit is sold individually.

Key Features

• Dual-finish blade: chrome clad for innage, Nubian for outage measurement in a single tape
• Style D1 blade in steel construction for durability in petroleum environments
• 25-foot blade length suitable for standard above-ground and underground storage tank gauging
• 0.5-inch blade width for stable, consistent drop into tank opening
• 590 bob cut plumb bob for accurate plumb measurement during gauging
• Compact case at 9 inches overall length for easy field carry

Compatibility

Designed as an OEM-style replacement or direct-use gauging tape for applications requiring a double-duty innage and outage measurement tape with a 590 bob cut and D1 blade style.

Installation Notes

Oil gauging tapes are deployed by petroleum equipment technicians and fuel storage service professionals. Before gauging, confirm the tank is depressurized and follow all applicable safety protocols for working around flammable liquids. The tape and bob should be lowered steadily without kinking the blade to ensure an accurate reading. Always wipe and inspect the blade after each use to prevent corrosion and maintain measurement accuracy.

Technical Specifications

• Blade Length: 25 ft
• Blade Width: 0.5 inches
• Blade Material: Steel
• Blade Finish: Chrome Clad / Nubian
• Blade Style: D1
• Bob Cut: 590
• Overall Case Length: 9 inches
• Package Width: 6.1 inches
• Package Height: 1.7 inches
• Weight: 1.6 pounds
• UPC: 037103459534

Standard Information

• Brand: APEX
• Manufacturer Part Number: CN1290SF590N
