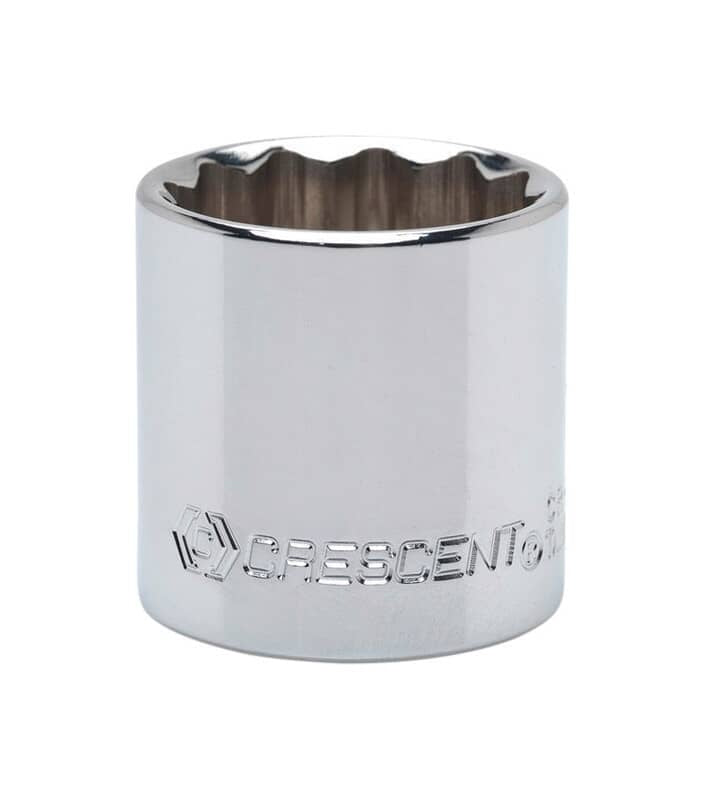

Apex CDS106N Crescent 1-7/8 In. X 3/4 In. Drive Sae 12 Point Standar

Product Description

The Apex CDS106N Crescent 1-7/8 In. X 3/4 In. Drive Sae 12 Point Standar is a standard style socket made from chrome vanadium alloy steel. It is specially formulated and heat treated for high strength and superior resistance to abrasion and corrosion. The off-corner load feature reduces fastener rounding.

• Made from chrome vanadium alloy steel
• SAE measuring system
• 12 Point socket

Product Highlights

The Apex CDS106N socket features a 3/4 In. drive size and a 1-7/8 In. socket size. It conforms to ASME B107.1-2002 standards.

Product Information

Standard Information

• Brand: APEX
• Manufacturer Part Number: CDS106N

Technical Specifications

• Drive Size: 3/4 In.
• Metric Or Sae: SAE
• Number Of Points: 12 Point
• Style: Standard
• Product Type: Socket
• Length: 2.36 In.
• Material: Chrome Vanadium Alloy Steel
• Number in Package: 1 pc
• Drive Size [Nom]: 3/4 in
• Impact Rated: No
• Socket Size: 1-7/8"
• Hazardous Material: No
• Finish: Full Polish Chrome
• Type: Socket
• Measuring System: SAE
• Nominal Opening Size: 1 7/8 in
• No. of Points: 12
• Drive Style: Hex
• Insulated: No
• Standards: ASME B107.1-2002
• Length Type: Standard
• Coating/Finish: Nickel Chrome Plated
• Overall Length (Decimal Inch): 2.9300
• Product Service Code: 5120
• Tether Style: Tether Capable
• UNSPSC Code: 27111704
• Socket Size (Inch): 1-7/8
• Drive Type: 12 Point
• Opening Size [Nom]: 1 7/8 in
• Tip Type: 12 Point
• Width [Nom]: 2.55 in
• Part Number: CDS106N
• Manufacturer: Apex Tool Group
• Description: 3/4" DRIVE,1-7/8" SOCKET,12PT
• Series: *
• Other Names: 037103322036
