Apex C2920MME150MN Atlas Chrome Clad Oil Gauging Tape

Product Description

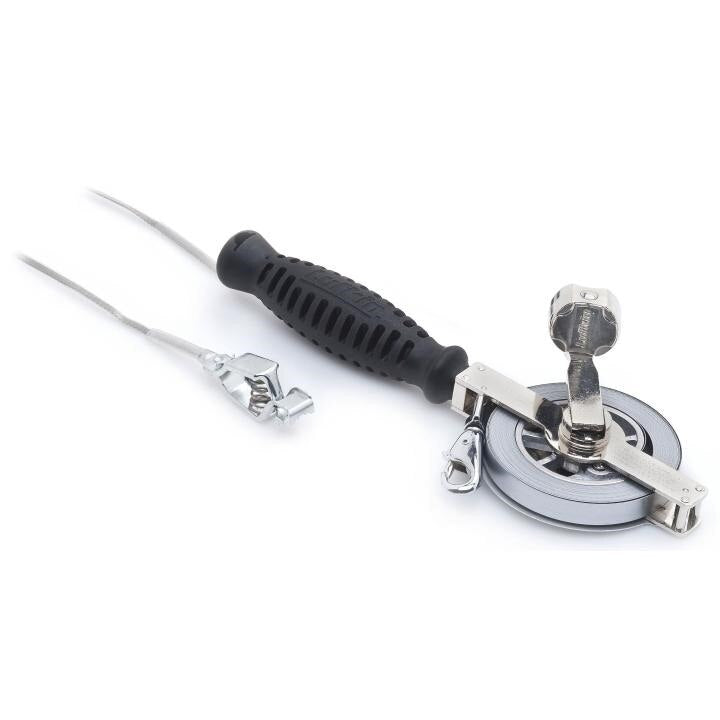

The APEX C2920MME150MN is a chrome clad oil gauging tape designed for accurate liquid level measurement in tanks, storage vessels, and other industrial applications. The blade is constructed from steel with a chrome clad finish that resists corrosion and wear during repeated contact with oils and fuels. At 66 feet in length and 0.5 inches wide, the tape uses a D6 blade style paired with a 150MM plumb bob cut. This tool is used by petroleum service technicians, maintenance professionals, and tank inspection crews who require reliable manual gauging of liquid depth.

This oil gauging tape is suited for field use in petroleum storage, fuel depot, and industrial tank environments where manual tank gauging is required. The 66-foot blade length accommodates a wide range of tank depths commonly found in above-ground storage tank operations. The chrome clad steel blade holds up against hydrocarbon exposure and the physical demands of daily field use. Technicians performing API-standard tank gauging operations will find the blade length and bob cut appropriate for standard gauging workflows.

Key Features

• Chrome clad steel blade resists corrosion from oil and fuel contact
• 66-foot blade length covers a wide range of tank depths
• D6 blade style for consistent, reliable tape deployment
• 150MM bob cut for accurate plumb bob interface at the tape end
• 0.5-inch blade width for controlled reeling and readability
• Compact housing at 9.1 x 6.2 x 1.8 inches for field portability

Compatibility

Designed as an OEM-style replacement or direct-use gauging tape for manual tank gauging applications requiring a D6 blade style with a 150MM bob cut and 66-foot reach.

Installation Notes

Oil gauging tapes are deployed by petroleum service technicians and tank inspection professionals following applicable API gauging procedures. Before use, ensure the tank opening or gauging hatch is safely accessible and all ignition sources are controlled in flammable fuel environments. Inspect the blade and bob for damage before each use. Follow facility safety protocols and local regulations governing tank entry and vapor exposure.

Technical Specifications

• Blade Finish: Chrome Clad
• Blade Length: 66 ft
• Blade Material: Steel
• Blade Style: D6
• Blade Width: 0.5 inches
• Bob Cut: 150MM
• Overall Height: 1.8 inches
• Package Length: 9.1 inches
• Package Width: 6.2 inches
• Weight: 2.5 pounds
• UOM: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: C2920MME150MN
