Apex 891427 Pass-thru Mechanics Tool Set 1/4 in Drive

Product Description

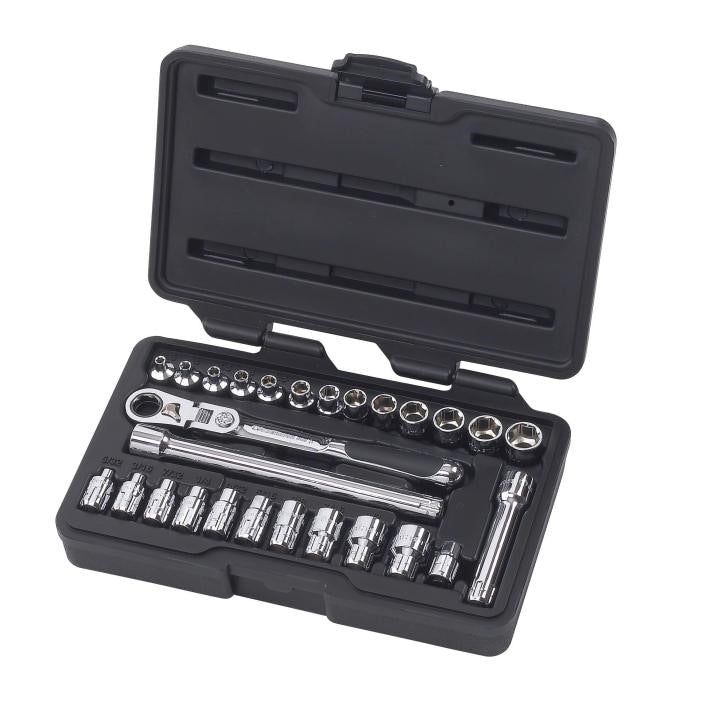

The APEX 891427 is a Pass-Thru mechanics tool set built around a 1/4 inch drive, 6-point socket and ratchet system engineered for productivity and access in tight-clearance applications. The GearRatchet handle requires as little as 5 degrees of swing arc to move fasteners, compared to 30 degrees for standard ratchets. The ratchet body is up to 50 percent thinner than standard ratchets and eliminates the drive tang, resulting in a design that is 40 percent stronger than conventional ratchets. Pass-Thru sockets feature a thin-wall construction that replaces deep well sockets by allowing the socket to pass over bolts of any length.

This tool set is suited for professional mechanics, technicians, and tradespeople who regularly work in confined spaces where standard ratchets cannot achieve adequate swing arc. The Pass-Thru socket design integrates directly into the GearRatchet handle, reducing overall height above the fastener and increasing torque transfer. An included adapter allows standard sockets and drive tools to be used with the GearRatchet handle, extending the utility of the set across a broader range of applications.

Key Features

• 5-degree swing arc for fastener movement in tight spaces
• Ratchet body up to 50 percent thinner than standard ratchets
• 40 percent stronger than standard ratchets due to elimination of drive tang
• Pass-Thru thin-wall sockets accommodate bolts of any length without switching to deep well sockets
• Integrated socket-to-handle fit reduces overall working height
• Included adapter accepts standard sockets and 1/4 inch drive tools

Compatibility

Designed for use with the GearRatchet handle system; included adapter provides compatibility with standard 1/4 inch drive sockets and drive tools.

Installation Notes

This set is intended for use by professional mechanics and service technicians. Before beginning fastener work, ensure the work area is de-energized or depressurized as required by the application. Inspect all sockets and the ratchet mechanism for wear or damage before each use. Follow applicable torque specifications from the equipment manufacturer when final-tightening fasteners.

Technical Specifications

• Drive Size: 1/4 inch
• Point Count: 6 point
• Minimum Swing Arc: 5 degrees
• Weight: 10.37 pounds
• UPC: 082171891427

Standard Information

• Brand: APEX
• Manufacturer Part Number: 891427
