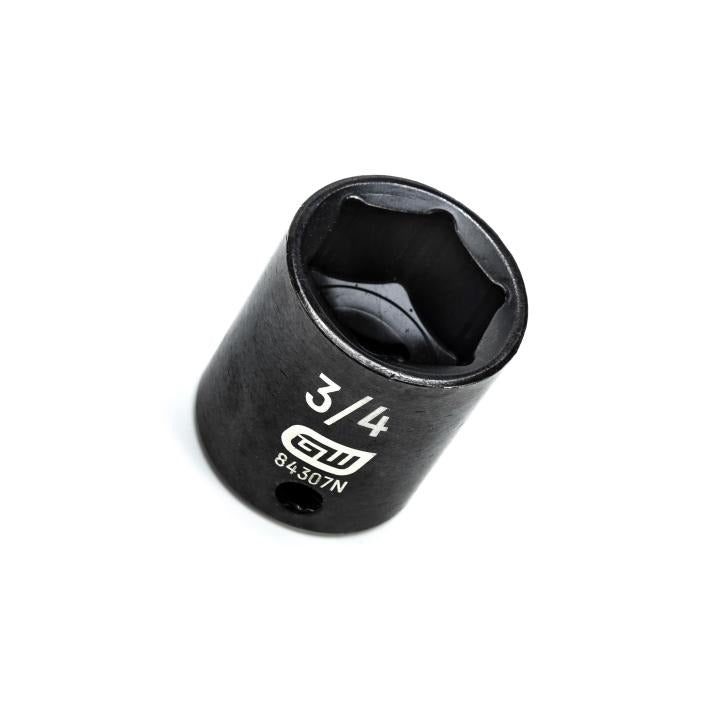

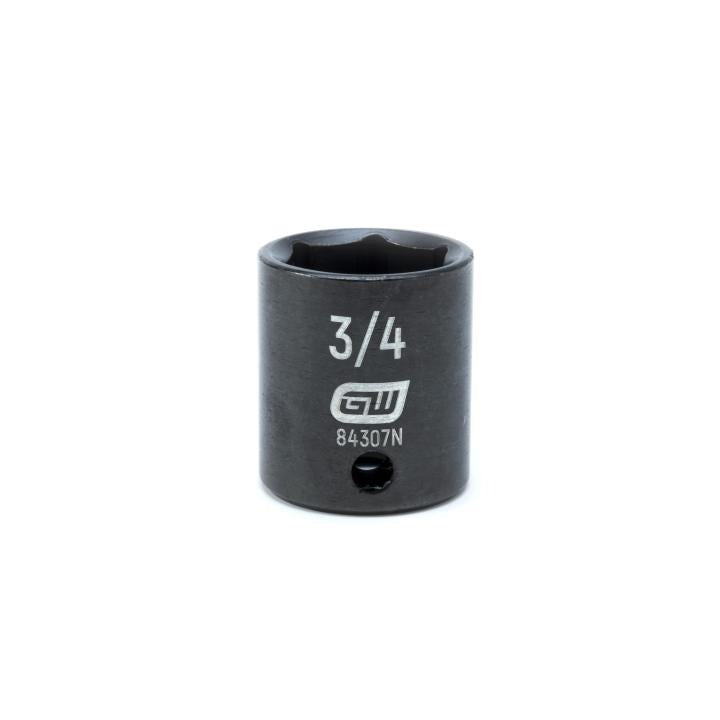

Apex 84307N 3/8 inches Drive 6 Point Standard Impact SAE Socket 3/4 inches

Product Description

The APEX 84307N is a 3/8" drive, 6 point standard impact SAE socket. Constructed from chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability. Features off-corner loading design reduces fastener rounding and a black oxide finish to resist corrosion.

• Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
• Off-corner loading design reduces fastener rounding
• Black oxide finish to resist corrosion

Product Highlights

This impact socket features high-visibility laser-etched markings for quick size identification and meets or exceeds ASME specifications.

Product Information

Standard Information

• Brand: APEX
• Manufacturer Part Number: 84307N
• Country of Origin: PEOPLE'S REPUBLIC OF CHINA

Technical Specifications

• Drive Tang Size: 3/8 in
• Size: 3/4 in
• Magnetic: No
• SAE/Metric/Torx: SAE
• Prop 65: No Warning
• Material: Chrome-Molybdenum (Cr-Mo)
• Length Format: Standard
• Finish: Black Oxide
• ASME Specification: B107.2
• Dim. F : Length to Shoulder: 1.181 in
• Dim. B : Wrench End: 1.055 in
• Dim. A : Drive End: 1.055 in
• Dim. E : Wrench Depth: 0.472 in
• Dim. D : Bolt Clearance: 0.724 in
• Packaging: Hang Tab
• Hi-Viz : No
• Drive Type: 6 Point
• Socket Material: Chrome Alloy Steel
• Socket Depth: Standard
• Material Type: Chrome Molybdenum Steel
• VMRS Code: 053006195
• Socket Points: 6 Points
• Regular Or Impact: Impact
• SDS Required: No
• Drive Size - Imperial: 3/8
• AF Size - Imperial: 3/4
• Length: 1.181
• Tool Type: Socket
• Tip Type: 6 Point Socket
• Moisture Sensitivity Level (MSL): Not Applicable
• Part Status: Active
