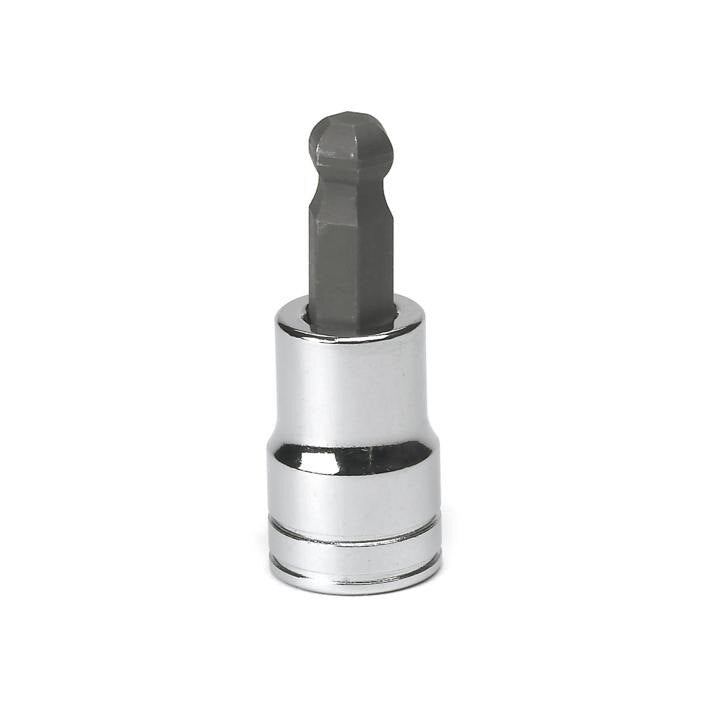

Apex 80542 Ball Hex Bit Socket 3/8 in Drive 7/32 in

Product Description

The APEX 80542 is a ball end hex bit socket designed for 3/8 inch drive ratchets and wrenches. It measures 7/32 inch (0.591 inch) in hex size and is built from two distinct materials for performance: a heat-treated alloy steel base socket and an S2 steel hex bit. The ball end geometry allows up to a 25-degree entry angle, enabling access to internal hex fasteners in confined or obstructed spaces. At 0.12 pounds and 1.653 inches in length, it is a compact, lightweight addition to any professional socket set.

This bit socket is suited for mechanical, HVAC, electrical, and general trade work where internal hex fasteners are common. The 3/8 inch drive fits standard ratchets, extensions, and drive tools already in most service kits. The ball end design is especially useful in engine bays, equipment panels, and tight cabinet interiors where straight-on access is not possible.

Key Features

• Ball end hex bit allows up to a 25-degree off-axis entry angle for hard-to-reach fasteners
• S2 steel bit construction for high-impact strength and durability
• Heat-treated alloy steel base socket for long tool life
• 3/8 inch drive compatible with standard ratchets and extensions
• Compact 1.653 inch length for use in tight spaces

Compatibility

Designed for use with standard 3/8 inch drive ratchets, extensions, and drive tools. Fits 7/32 inch internal hex fasteners.

Installation Notes

Install and remove using a 3/8 inch drive ratchet or breaker bar. Ensure the fastener head is fully engaged before applying torque to avoid rounding the hex recess. When using the ball end angle, avoid applying maximum torque at extreme entry angles, as straight engagement provides the highest torque transfer. This tool is sold individually — confirm fastener size before use.

Technical Specifications

• Drive Size: 3/8 inch
• Hex Size: 7/32 inch (0.591 inch)
• Length: 1.653 inches
• Weight: 0.12 pounds
• Bit Material: S2 Steel
• Socket Material: Heat-Treated Alloy Steel
• Entry Angle: Up to 25 degrees
• Sold As: Each
• UPC: 099575805424

Standard Information

• Brand: APEX
• Manufacturer Part Number: 80542
