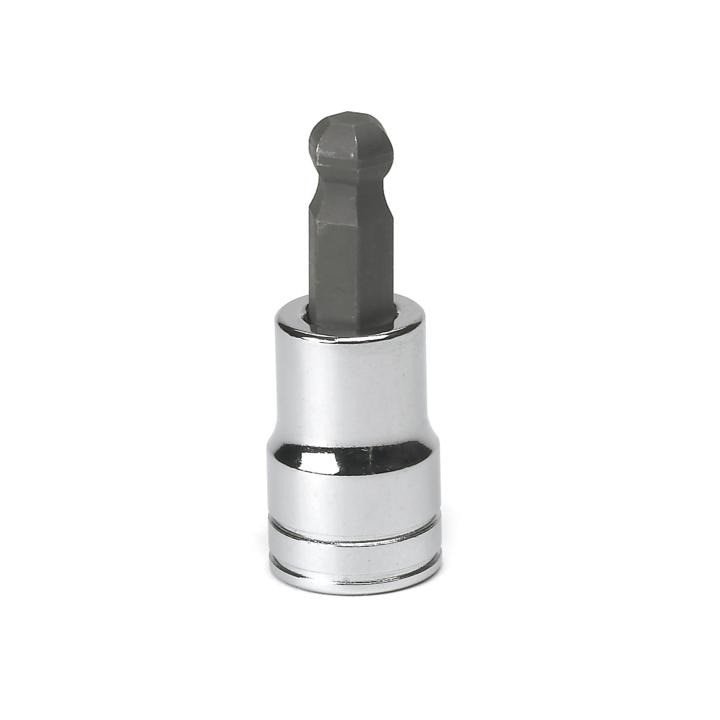

Apex 80539 Ball Hex Bit Socket 3/8 Inch Drive 1/8 Inch

Product Description

The APEX 80539 is a ball hex bit socket designed for use with 3/8 inch drive ratchets and extensions. The socket body is constructed from heat-treated alloy steel for durability and extended tool life. The integrated hex bit is manufactured from S2 steel, which provides high strength under torsional load. The ball end geometry allows up to a 25-degree entry angle, enabling access to internal hex fasteners in recessed or obstructed locations. This type of socket is used daily by mechanics, maintenance technicians, and trade professionals working with hex-drive fasteners in confined spaces.

The APEX 80539 is suited for applications where straight-on fastener access is not possible. The 1/8 inch ball hex bit size covers small internal hex fasteners common in HVAC equipment panels, electrical enclosures, plumbing fixture assemblies, and general mechanical maintenance. The 3/8 inch drive interface is compatible with standard 3/8 inch drive ratchets, breaker bars, and torque wrenches, making it a practical addition to a professional socket set.

Key Features

• Ball end hex bit allows up to 25-degree offset entry angle for hard-to-reach fasteners
• S2 steel bit construction for high torsional strength and resistance to rounding
• Heat-treated alloy steel socket base for long service life
• 3/8 inch drive interface fits standard ratchets, extensions, and torque wrenches
• 1/8 inch hex bit size for small internal hex fasteners
• Sold individually, UOM: Each

Compatibility

Designed for use with standard 3/8 inch drive ratchets, extensions, and torque wrenches accepting square-drive bit sockets.

Installation Notes

Install and remove using a 3/8 inch drive ratchet or torque wrench. Ensure the fastener head is clean and free of debris before engagement to prevent bit slippage. The ball end allows angled engagement up to 25 degrees, but apply torque only within the designed angle range to avoid damaging the bit or fastener. Inspect the bit tip for wear regularly and replace if rounding or deformation is observed.

Technical Specifications

• Drive Size: 3/8 inch
• Bit Type: Ball Hex
• Bit Size: 1/8 inch
• Entry Angle: 25 degrees
• Bit Material: S2 Steel
• Socket Material: Heat-Treated Alloy Steel
• Length: 1.653 inches
• Weight: 0.09 pounds
• UPC: 099575805394

Standard Information

• Brand: APEX
• Manufacturer Part Number: 80539
