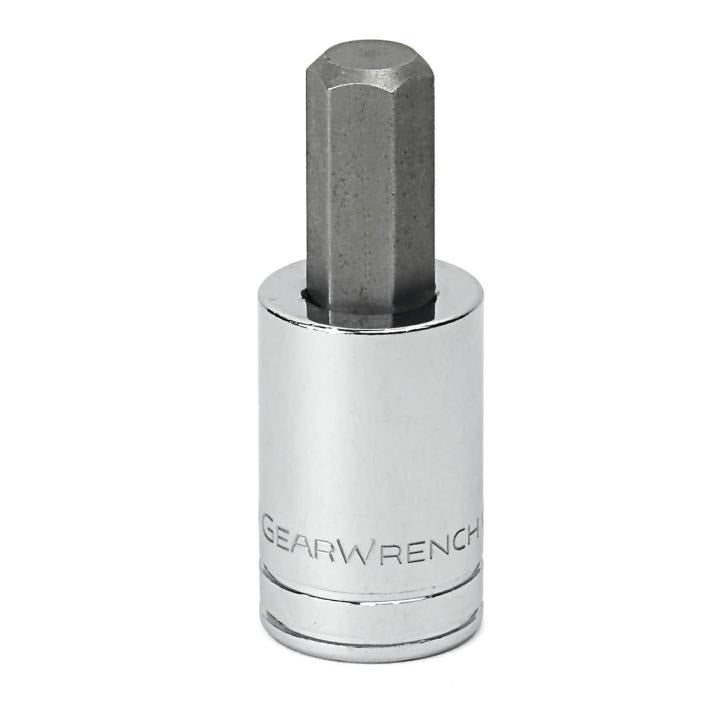

Apex 80163 Hex Bit Socket 1/4 Inch Drive 3 Mm

Product Description

The APEX 80163 is a 1/4 inch drive hex bit socket designed for driving and removing internal hex fasteners in trade and industrial applications. The base socket is constructed from heat-treated alloy steel for structural durability and extended service life. The hex bit itself is manufactured from S2 steel, which delivers high impact and torque resistance under repeated use. At 1.53 inches in length and 0.05 pounds, this socket is compact and well-suited for work in confined spaces where a standard hex key or bulkier drive tool would be impractical.

This bit socket is a practical addition to any service technician's drive set. It is commonly used in HVAC, electrical, plumbing, and general mechanical work where internal hex fasteners are encountered on equipment covers, motor mounts, valve assemblies, and control panels. The 3 MM hex size fits metric fastener applications. Sold individually, it can supplement an existing socket set or replace a worn or missing size in the field.

Key Features

• 1/4 inch square drive for use with standard ratchets, extensions, and adapters
• 3 MM hex bit size for metric internal hex fasteners
• Heat-treated alloy steel base socket for durability and long tool life
• S2 steel bit for high strength and torque resistance
• Compact 1.53 inch length suited for tight-access fastener locations

Compatibility

Designed as a standard 1/4 inch drive bit socket compatible with any 1/4 inch drive ratchet, torque wrench, or extension bar.

Installation Notes

Hex bit sockets are installed and removed by hand on any compatible 1/4 inch drive tool. Ensure the drive tool is rated for the torque required by the fastener application. Inspect the bit for wear or rounding before use, as a damaged bit can strip fasteners. No power-down procedures are required for tool use alone, but always de-energize or isolate any equipment before accessing fasteners on live systems.

Technical Specifications

• Drive Size: 1/4 inch
• Bit Type: Hex
• Hex Size: 3 MM
• Length: 1.53 inches
• Weight: 0.05 pounds
• Base Socket Material: Heat-Treated Alloy Steel
• Bit Material: S2 Steel
• Sold As: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: 80163
