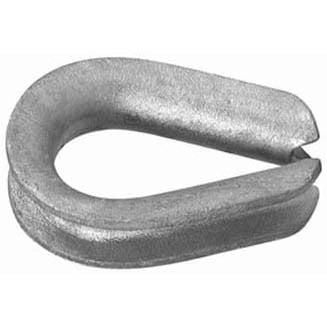

Apex 6260203 Wire Rope Thimble 3/8 Inch Galvanized Steel

Product Description

The APEX 6260203 is a heavy-duty wire rope thimble designed to protect wire rope at eye terminations from cuts, kinking, and abrasion. Manufactured from hot rolled mild steel with a galvanized zinc-plated finish, this thimble fits 3/8 inch diameter wire rope and measures 3 inches in length. It is installed by riggers, marine technicians, and general contractors anywhere a wire rope eye must be formed around a fitting or anchor point. The galvanized coating provides corrosion resistance in outdoor and marine-adjacent environments.

This thimble is suited for use in rigging, lifting slings, tie-down assemblies, and guy wire applications where wire rope must terminate at a shackle, turnbuckle, or clevis. It is appropriate for residential, commercial, and industrial installations wherever a 3/8 inch wire rope eye is required. Because thimbles function as wear pads rather than load-bearing components, no working load limit is established for this part — it is always used in conjunction with a properly rated rope and end fitting.

Key Features

• Protects wire rope from cuts, kinking, and abrasion at eye terminations
• Fits 3/8 inch diameter wire rope
• Hot rolled mild steel construction with galvanized zinc-plated finish for corrosion resistance
• Heavy-duty profile for use in demanding rigging and tie-down applications
• Not rated for independent load-carrying use — functions as a rope protection insert

Compatibility

Designed for use with 3/8 inch diameter wire rope in standard eye-termination assemblies using shackles, turnbuckles, or clevis fittings.

Installation Notes

Installation is performed by riggers or qualified tradespeople familiar with wire rope termination practices. When opening the thimble to insert a fitting, ensure the points are properly realigned and fully closed before use. Inspect the thimble carefully for cracks before and after installation. Thimbles are not designed for independent load carrying and must always be paired with a properly rated wire rope and end fitting.

Technical Specifications

• Wire Rope Diameter: 3/8 inches
• Length: 3 inches
• Material: Hot Rolled Mild Steel
• Finish: Galvanized / Zinc Plated
• Unit of Measure: Each
• UPC: 020418091735

Standard Information

• Brand: APEX
• Manufacturer Part Number: 6260203
