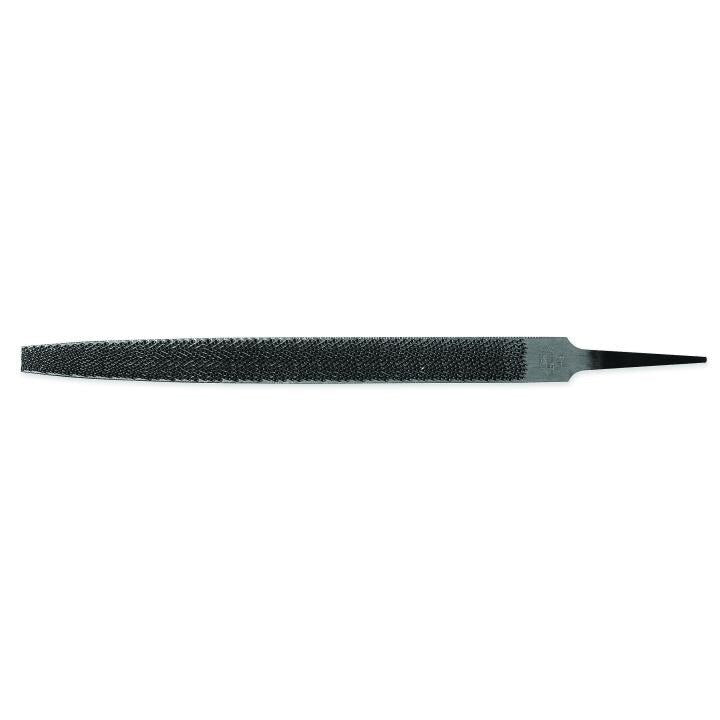

Apex 18846N Pattern Makers Cabinet Rasp Half Round 10 Inch

Product Description

The APEX 18846N is a pattern maker's cabinet rasp designed for shaping and smoothing wood, plastics, and soft metals in precision hand-tool applications. This half-round file features a second-cut tooth pattern and cut edges, delivering a balance of material removal rate and surface finish quality suited to detailed fitting and pattern work. The file body measures 10 inches in length, 0.866 inches in width, and 0.142 inches in thickness, giving the user a sturdy, low-profile profile for working in tight contours and concave surfaces. Markings are hard stamped for permanent identification. The tool is constructed from steel for durability under repeated use in shop and field environments.

The 18846N is intended for use in pattern making, millwork, carpentry, and general-purpose filing tasks where a half-round profile is needed to address both flat and curved work surfaces. It suits woodworking shops, pattern shops, and maintenance environments where hand-fitting of components demands consistent tooth geometry and repeatable results. The second-cut designation makes it appropriate for intermediate material removal followed by fine finishing steps.

Key Features

• Half-round shape addresses both flat and curved surfaces in a single tool
• Second-cut tooth pattern balances stock removal and surface refinement
• Cut edges allow filing close to shoulders and adjacent surfaces without marring
• Hard-stamped markings provide permanent cut and grade identification
• Steel construction for shop durability and repeated use
• 10-inch file length suits medium-scale pattern and cabinet work

Compatibility

Designed as a standard pattern maker's cabinet rasp suitable for use with conventional file handles accepting half-round file tangs in the 10-inch size class.

Installation Notes

Pattern maker's rasps and files are installed by hand tool trades including carpenters, pattern makers, and millwrights. Secure the file in an appropriate handle rated for the tang size before use to prevent hand injury. Inspect the tang and handle fit before applying pressure. Files should not be used on hardened steel surfaces, as this can damage the teeth and reduce tool life.

Technical Specifications

• File Length: 10 inches
• File Width: 0.866 inches
• File Thickness: 0.142 inches
• Overall Length (packaged): 12.62 inches
• File Shape: Half Round
• File Cut: Second
• Edge Type: Cut Edges
• Marking Style: Hard Stamped
• Material: Steel
• Weight: 0.25 pounds
• UOM: Each

Standard Information

• Brand: APEX
• Manufacturer Part Number: 18846N
