Apex 1293SF590N Atlas Nubian Oil Gauging Tape 50 Ft

Product Description

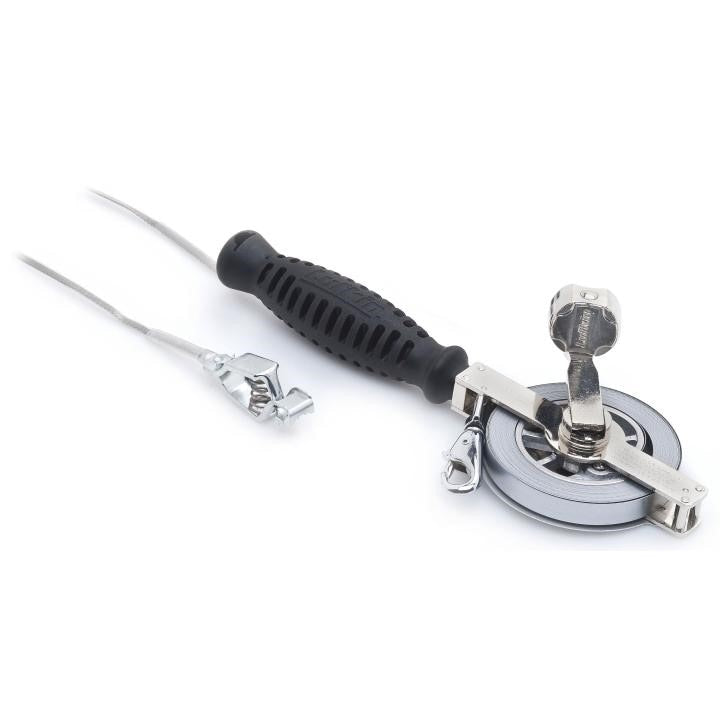

The APEX 1293SF590N is an oil gauging tape designed for measuring fluid levels in storage tanks and fuel oil applications. It features a 50-foot steel blade with a Nubian finish and a D5 blade style, providing durability and consistent performance in field conditions. The blade measures 0.5 inches wide and is paired with a 590 bob cut, making this a purpose-built instrument for accurate manual tank gauging. This tool is typically used by fuel oil technicians, petroleum service professionals, and industrial maintenance personnel who require reliable depth measurement in storage tank environments.

This oil gauging tape is suited for petroleum storage tank measurement in both commercial and industrial settings. It is commonly deployed in fuel oil delivery operations, bulk fuel terminals, and on-site tank inventory applications where manual gauging is required. The compact housing measures 9.2 inches in overall length, making it manageable in confined service environments. Technicians working under API or industry standard gauging procedures will find this tape compatible with standard field gauging workflows.

Key Features

• 50-foot steel blade provides full-length reach for standard above-ground and underground storage tank gauging
• Nubian blade finish resists corrosion and remains legible in petroleum and fuel oil environments
• D5 blade style meets standard oil gauging tape profile requirements for petroleum applications
• 590 bob cut designed for accurate bottom contact and fluid level detection
• 0.5-inch blade width offers a balance of flexibility and readability in the field
• Compact housing at 9.2 inches overall length for easy transport and one-hand operation

Compatibility

Designed as an OEM-style oil gauging tape for use in petroleum tank measurement applications where a 50-foot steel gauging tape with D5 blade style and 590 bob cut is specified.

Installation Notes

Oil gauging tapes are used by fuel oil and petroleum service technicians following industry-standard manual tank gauging procedures. Before gauging, ensure the tank is in a static condition and that all applicable safety protocols for flammable or combustible liquid environments are observed. The tape and bob should be lowered carefully to avoid agitating the fuel surface and to ensure an accurate reading. Follow applicable OSHA, NFPA, and API guidelines for confined space and flammable liquid safety when performing tank gauging operations.

Technical Specifications

• Blade Length: 50 ft
• Blade Material: Steel
• Blade Finish: Nubian
• Blade Style: D5
• Blade Width: 0.5 inches
• Bob Cut: 590
• Overall Length: 9.2 inches
• Package Length: 9.2 inches
• Package Width: 6.1 inches
• Package Height: 1.8 inches
• Weight: 2.3 pounds
• UPC: 037103454201

Standard Information

• Brand: APEX
• Manufacturer Part Number: 1293SF590N
