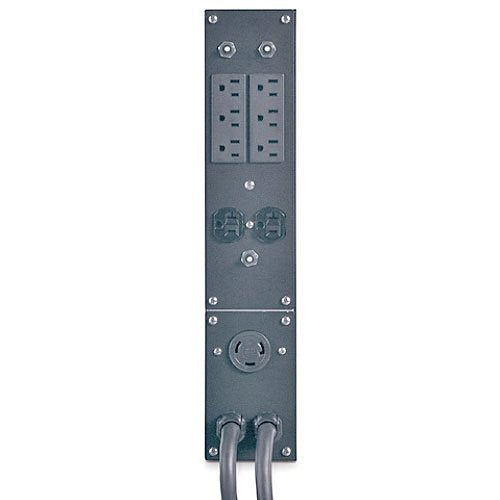

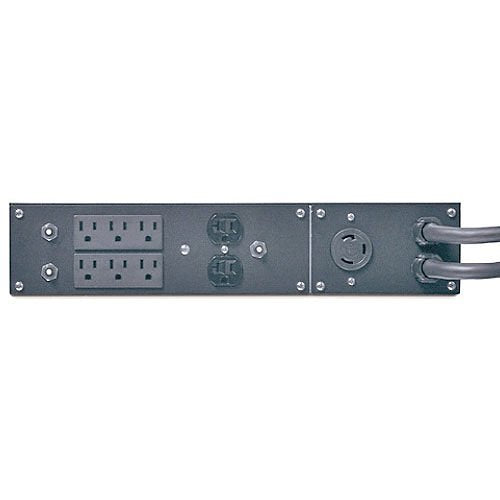

APC SBP3000RM2U service bypass panel 100-120V 30A BBM L5-30P input (2) 5-20R (6) 5-15R output

Product Description

The APC SBP3000RM2U is a service bypass panel designed for rack mounting. It supports an input voltage of one hundred to one hundred twenty volts at thirty amps. The product features two NEMA 5-20R outlets and six NEMA 5-15R outlets. This panel is ideal for isolating UPS systems without disrupting connected loads.

• Rack mountable design for easy installation.
• Supports quick transfer rates to minimize downtime.
• Features a wrap-around system bypass for efficient operation.

Product Highlights

This service bypass panel is essential for data communication and networking setups. It helps to isolate UPS from critical loads during maintenance. The APC SBP3000RM2U ensures protection and continuity of service by providing reliable backup power management.

Product Information

Standard Information

• Brand: APC by Schneider Electric
• Manufacturer: Schneider Electric SA

Technical Specifications

• Input Voltage: 100V AC, 120V AC
• Output Voltage: 100V AC, 120V AC
• Load Capacity: 3000 VA
• Current: 30 A
• Power Connection Type: NEMA L5-30P
• Receptacles: (2) NEMA 5-20R, (6) NEMA 5-15R
• Dimensions: 25.5 inches depth, 17 inches width, 3.5 inches height
• Weight: 30 lb
