Product Description

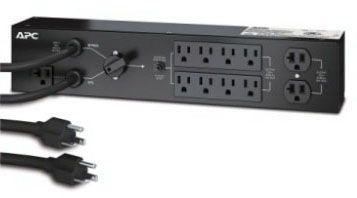

The APC SBP2200RM Service Bypass Panel, MPN SBP2200RM, provides reliable power distribution with multiple outlets. This panel includes six NEMA 5-15R outlets and two NEMA 5-20R outlets, all operating at one hundred twenty volts and twenty amps. It is designed to handle a total load capacity of two thousand two hundred VA, making it suitable for various applications in data communication and networking setups.
- Multiple standardized outlet types for increased compatibility
- Integrated rack mounting brackets for straightforward installation
- Environmentally friendly design compliant with REACH and RoHS standards
Product Highlights
This bypass panel enhances system reliability during maintenance, ensuring uninterrupted power supply while allowing for easy serviceability.
Product Information
Standard Information
-
Brand: APC by Schneider Electric
-
Model: SBP2200RM
Technical Specifications
-
Input Voltage: 120V
-
Output Voltage: 120V
-
Max Current Draw: 20A
-
Load Capacity: 2200 VA
-
Number of Outlets: 8 total (6 NEMA 5-15R, 2 NEMA 5-20R)
-
Operating Temperature: 32°F to 104°F
-
Dimensions: 3.5 inches depth x 17 inches width x 3 inches height
-
Weight: 6.5 lbs (2.95 kg)
-
Cord Length: 8 feet
