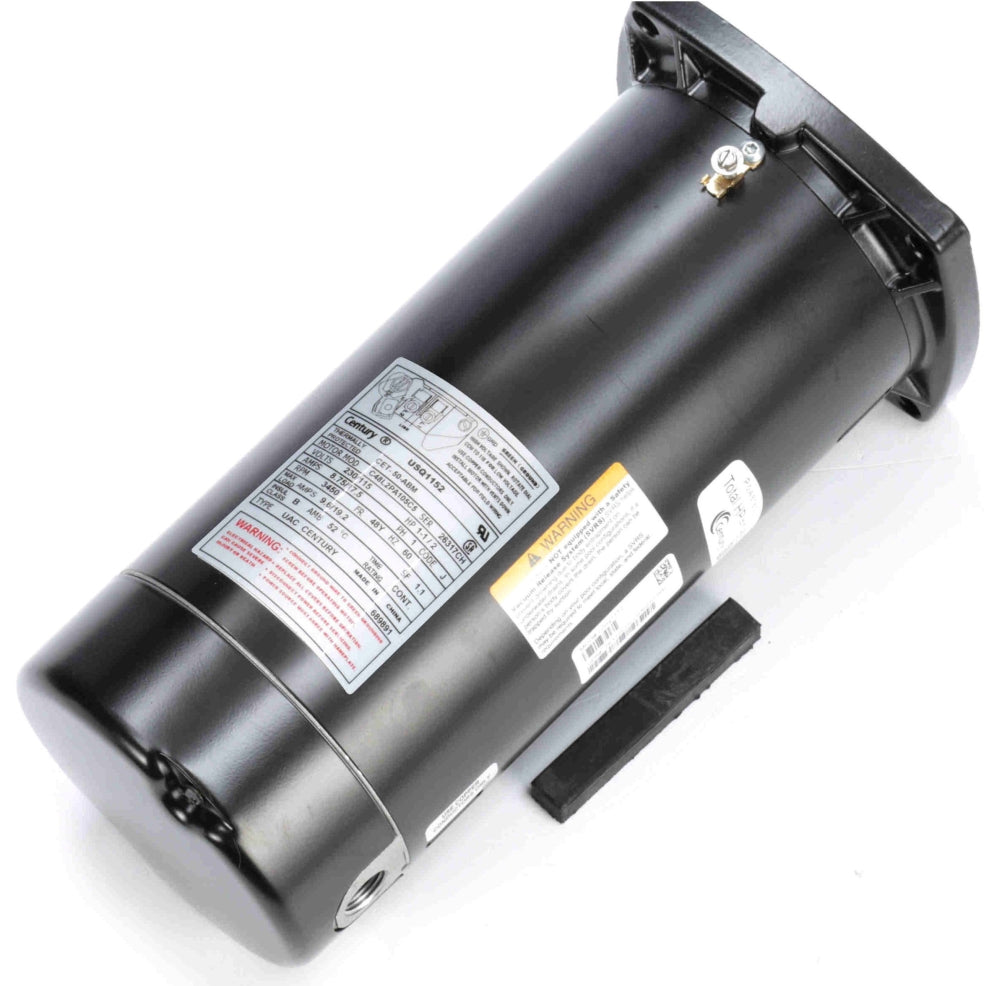

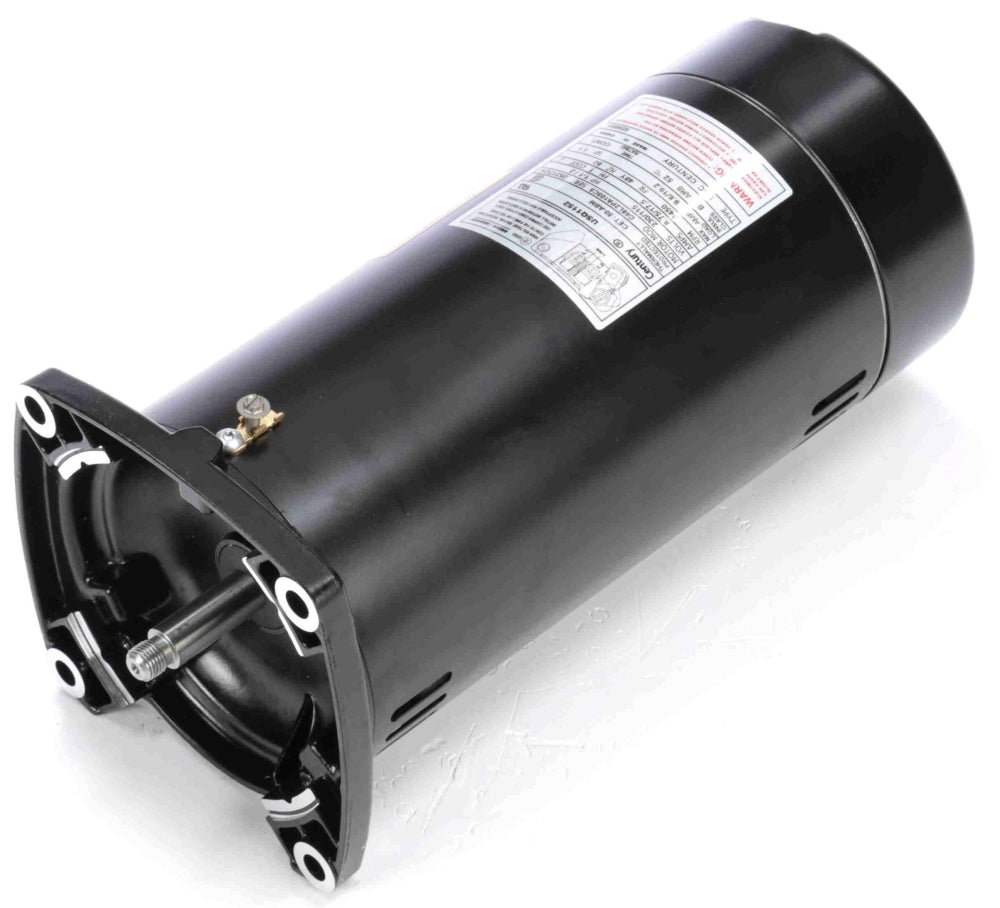

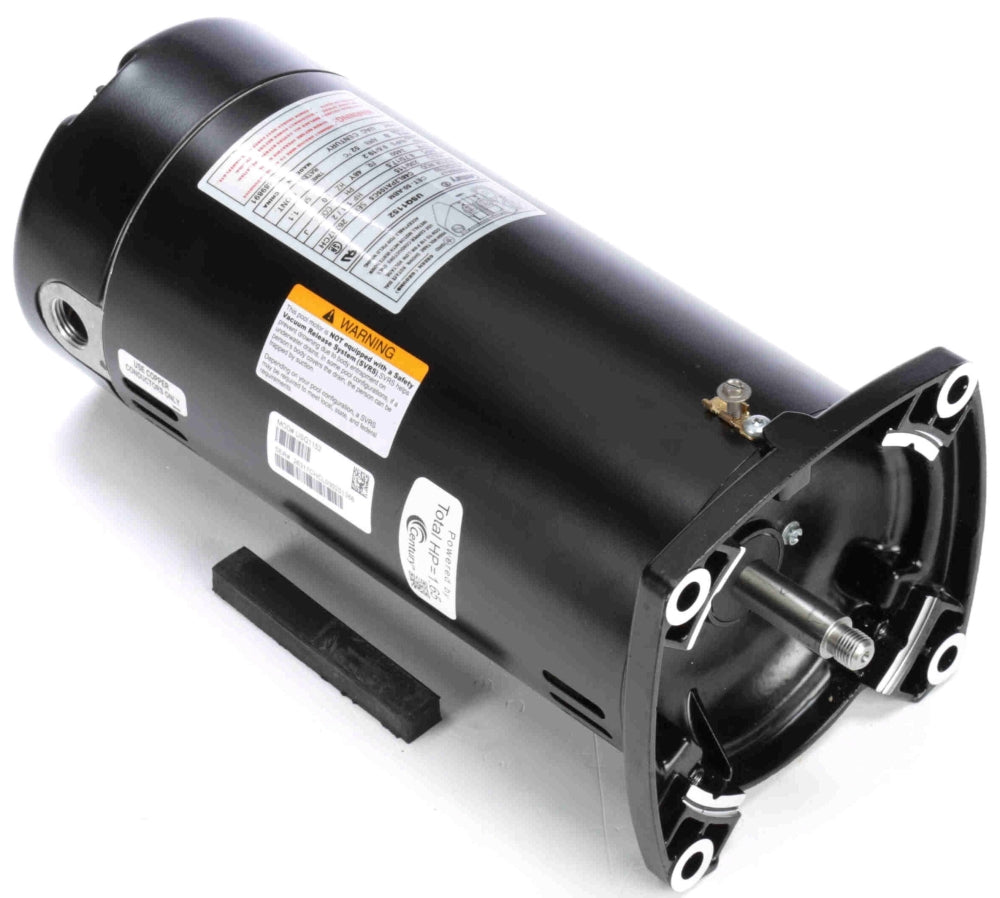

AO Smith USQ1152 Pool Pump Motor 1-1/2 HP 115/230V 60 Hz Single Phase

Product Description

The AO Smith USQ1152 Pool Pump Motor is designed for reliability in pool filtering applications. This motor is equipped with a 115/230 Volt AC single phase power, featuring a robust 1-1/2 horsepower engine that ensures efficient operation and optimal flow. The motor operates at 3450 RPM, with a total power draw of 19.2/9.6 Amps, making it a powerful solution for your pool needs.

• Capable of handling high demand pool filtering
• Durable rolled steel frame and stainless steel shaft
• Equipped with automatic thermal protection for safety

Product Highlights

This motor supports a square flange mounting type and is crafted from high-quality 303 stainless steel, providing exceptional durability and resistance to corrosion. The open drip proof enclosure ensures the motor operates efficiently, even in high moisture environments.

Product Information

Standard Information

• Power: 1-1/2 HP
• Voltage: 115/230V AC
• Frequency: 60 Hz

Technical Specifications

• Current: 19.2/9.6 Amps
• Speed: 3450 RPM
• Service Factor: 1.1
• Frame: NEMA 48Y
• Bearings: Drive End/Opposite Drive End Ball Bearing
• Class: B Insulation
