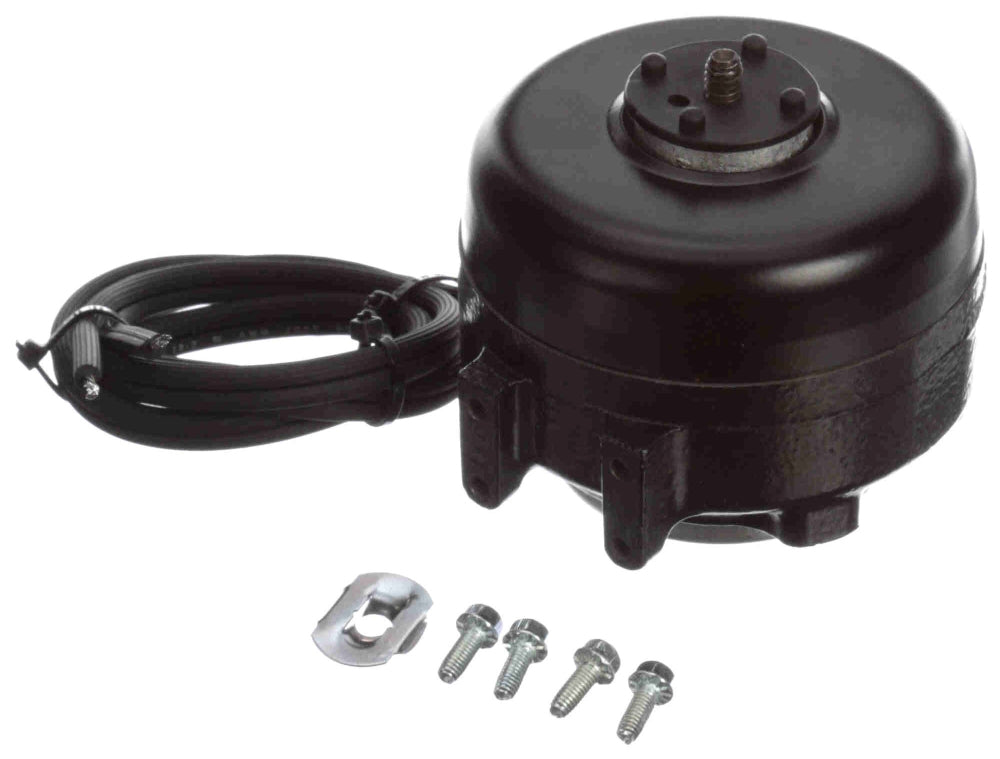

AO Smith UB04CCH2F 4 W Unit Bearing Fan Motor

Product Description

The AO Smith UB04CCH2F is a unit bearing fan motor designed for applications requiring efficient cooling. This motor operates on four watts of power and is rated for 230 VAC. It supports a frequency of 60/50 Hertz and runs at a speed of 1550 RPM.

• Continuous duty rating
• UL and CSA approved
• Cast iron frame for durability

Product Highlights

This motor features a totally enclosed air-over enclosure which protects against dirt and moisture, extending the life of the motor. The counter-clockwise lead end design makes it suitable for various mounting configurations.

Product Information

Standard Information

• Brand: AO Smith
• Part Number: UB04CCH2F

Technical Specifications

• Power Rating: 4 Watt
• Voltage Rating: 230 Volt AC
• Frequency Rating: 60/50 Hertz
• Motor FLA: 0.15 Amp
• Speed Rating: 1550 RPM
• Frame Material: Cast Iron
• Mounting: Horizontal and Shaft Up
• Approval: UL, CSA
• Type: Shaded Pole
• Rotation Type: Counter Clockwise Lead End
• Number of Rear Mounting Holes: 3
