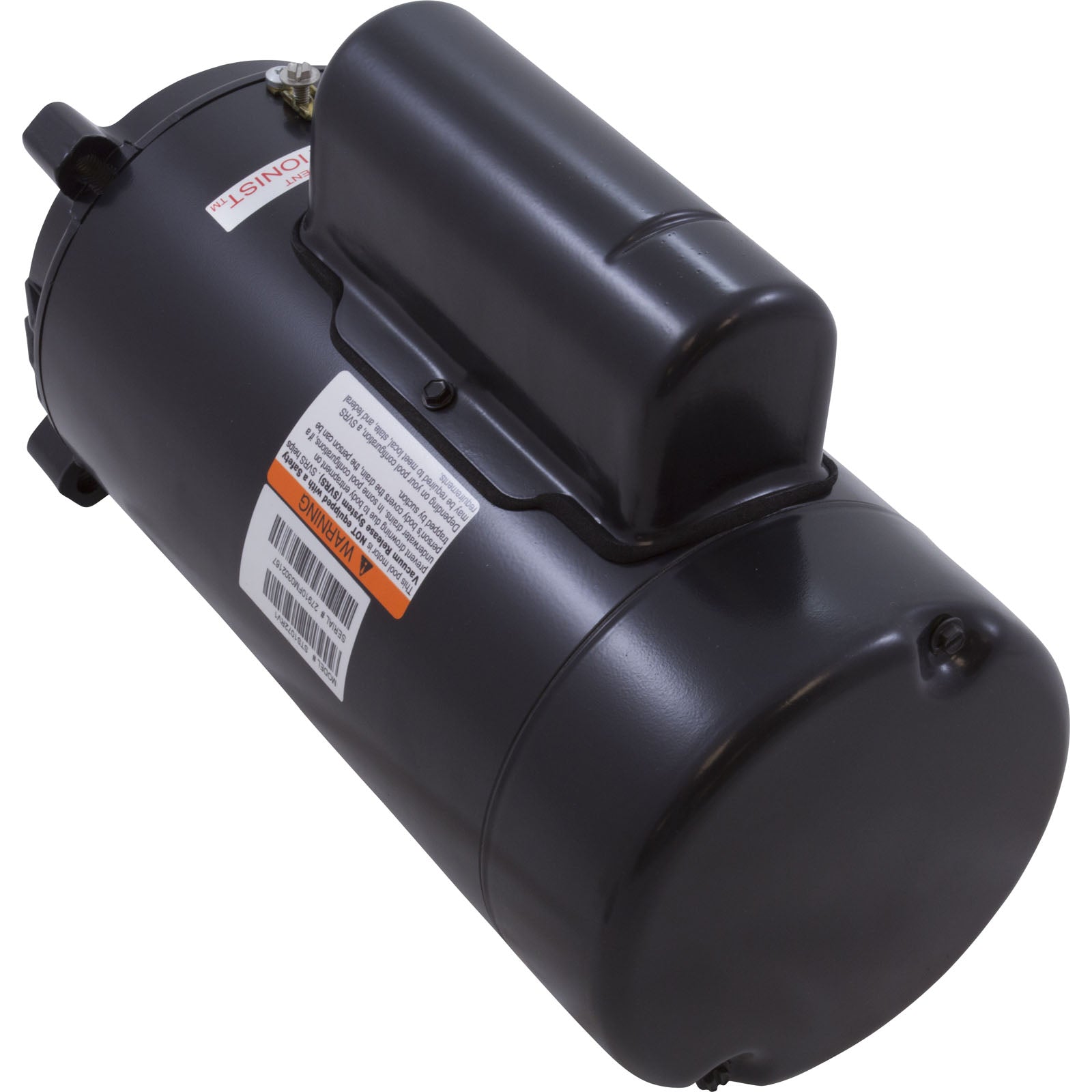

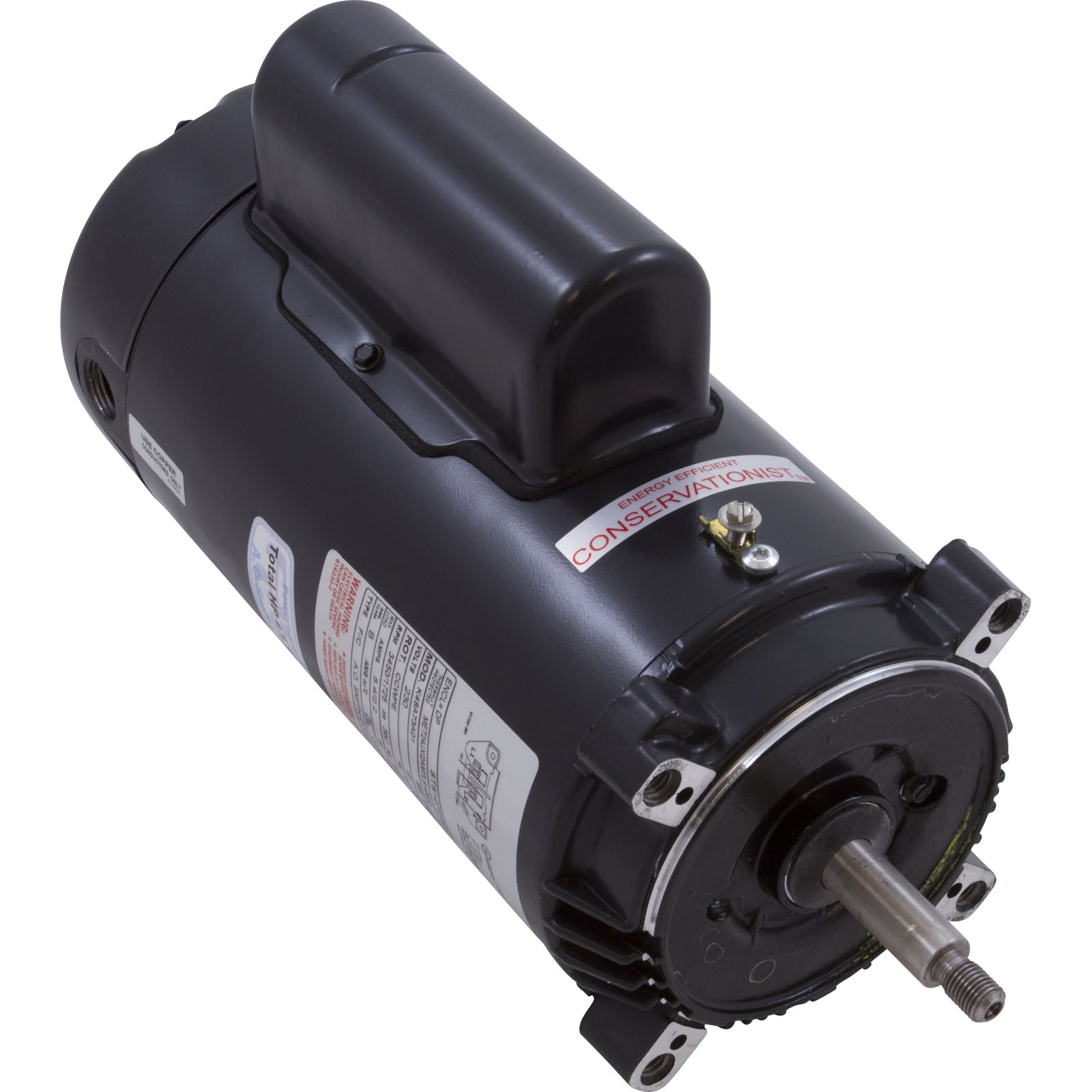

Century STS1072RV1 Pool and Spa Motor 3/4 HP 230V 56J Frame

Product Description

The Century STS1072RV1 is a pool and spa motor designed for efficient performance and durability. This motor features a horsepower of 3/4, a voltage of 230, and a 56J frame. It is ideal for applications in pools and spas, offering reliable service for trade professionals.

• PSC electrical type
• Single phase
• CCWSE rotation

Product Highlights

This motor is built with rolled steel and has an open drip proof enclosure. It supports continuous duty cycle and automatic overload protection, making it a dependable choice for various pool and spa applications.

Product Information

Standard Information

• Brand: Century
• MPN: STS1072RV1
• Category: Motor

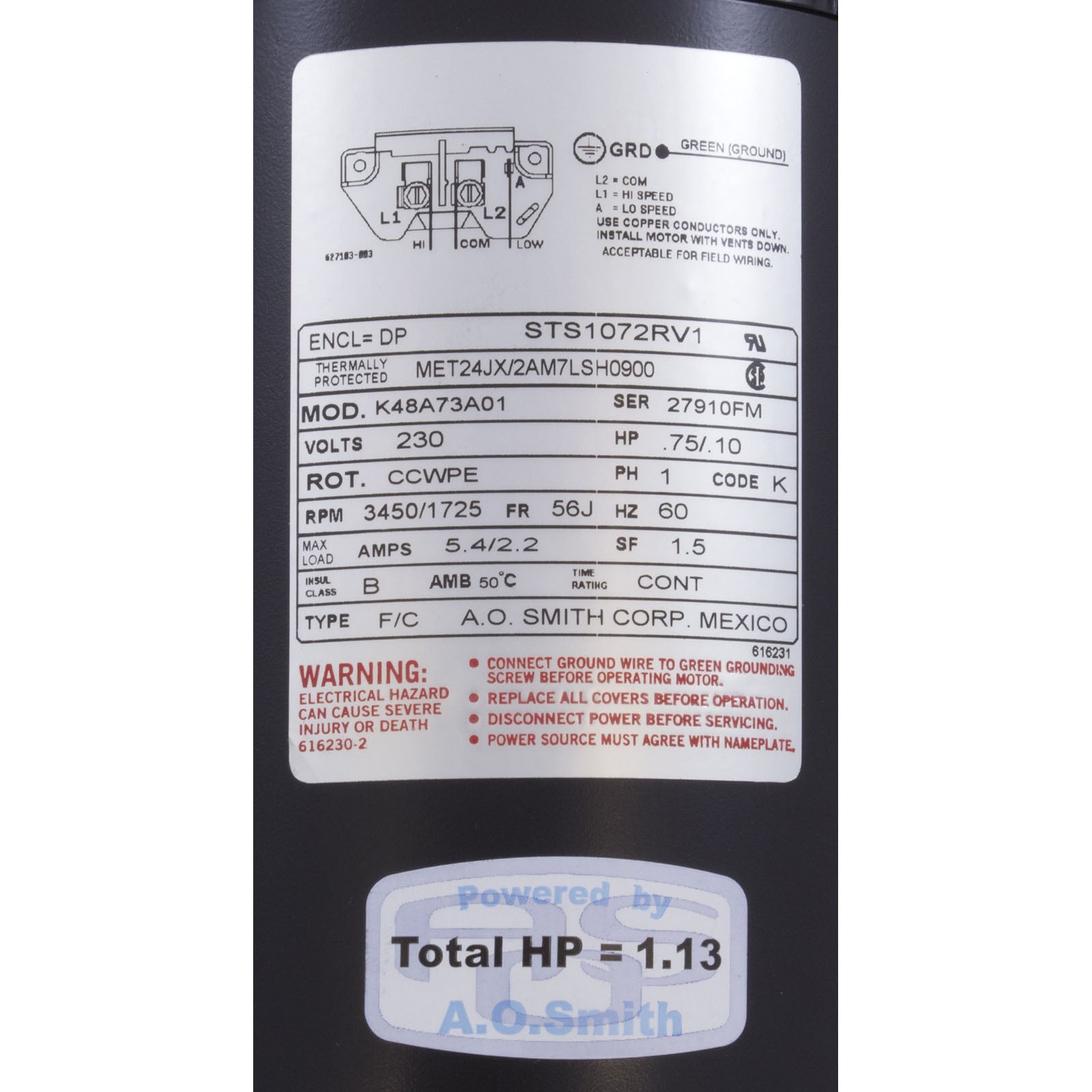

Technical Specifications

• Electrical Type: PSC
• HP: 3/4
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 230
• Rotation: CCWSE
• Overload: Auto
• Material: Rolled Steel
• Mounting: C-Face
• Amperage: 5.4/2.2
• Shaft Type: Single
• Full Load Amps: 5.4/2.2
• RPM: 3,450/1,725
• Nameplate RPM: 3,450/1,725
• No. of Speeds: 2
• Ins. Class: B
• Shaft Material: Stainless Steel
• Shaft Length: 2 9/16 inches
• Motor Bearings: Ball
• Overall Length: 14 11/16 inches
• Shaft Diameter: 5/8 inches
• Finish: Unfinished
• Max. Ambient Temp.: 50 degrees C
• Motor Frame Material: Steel
• Motor Mounting Type: Face
• Conduit Box Position: F3
• Motor Shaft Rotation: CCWSE
• Motor Flange Material: Aluminum
• Motor Sub Application: Pool and Spa Pump
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: Auto
• Country of Origin (subject to change): Mexico
